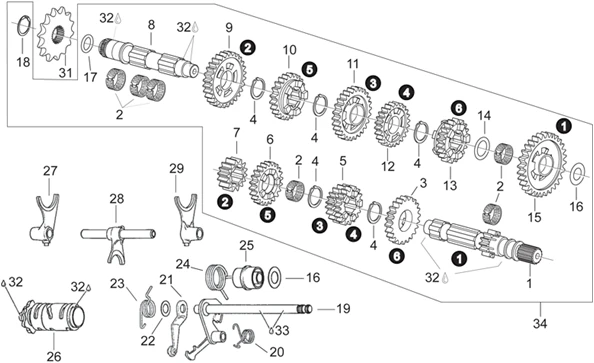

Vehicle Exploded View - APRILIA RS 125 1996-1998 (eng.123cc)

	P2R reference	43395
	Maker reference	AP0220075

AP0220075 - ARBRE PRIMAIRE 10. D

	P2R reference	43538
	Maker reference	AP0232742

ROLLER BEARING FOR CLUTCH "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, PEGASO, RS, TUONO -AP0259053-

	P2R reference	44380
	Maker reference	AP0634125

AP0634125 - ENGRENAGE

	P2R reference	43781
	Maker reference	AP0245730

CIRCLIPS FOR GEARBOX SHEFT "PIAGGIO GENUINE PART" APRILIA 125 RS, RX, SX, MX, CLASSIC, TUONO -AP0245730-

	P2R reference	44374
	Maker reference	AP0634095

AP0634095 - ENGRENAGE

	P2R reference	44376
	Maker reference	AP0634105

WHEEL GEAR ON PRIMARY SHAFT "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO -AP0634085-

	P2R reference	44373
	Maker reference	AP0634085

AP0634085 - ENGR. 2E SUR PRIM.

	P2R reference	43394
	Maker reference	AP0220050

AP0220050 - ARBRE SECONDAIRE

	P2R reference	43589
	Maker reference	AP0234968

AP0234968 - ENGRENAGE

	P2R reference	44378
	Maker reference	AP0634115

WHEEL GEAR (Z24) - SECONDARY "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO -AP0634115-

	P2R reference	43591
	Maker reference	AP0234984

AP0234984 - ENGRENAGE

	P2R reference	43588
	Maker reference	AP0234858

AP0234858 - ENGRENAGE

	P2R reference	44382
	Maker reference	AP0634135

AP0634135 - ENGRENAGE

	P2R reference	43767
	Maker reference	AP0244100

AP0244100 - RACLEUR

	P2R reference	44372
	Maker reference	AP0634065

AP0634065 - ENGRENAGE

	P2R reference	43471
	Maker reference	AP0227430

AP0227430 - RACLEUR

	P2R reference	44272
	Maker reference	AP0430460

AP0430460 - JOINT TORIQUE

	P2R reference	43778
	Maker reference	AP0245650

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO APRILIA 50-125 CC -AP0245650-

	P2R reference
	Maker reference	AP0220066

AXE DE SELECTEUR RS

	P2R reference
	Maker reference	AP0239835

Ressort

	P2R reference
	Maker reference	AP0248255

LEVIER INDEX

	P2R reference	44499
	Maker reference	AP0827261

AP0827261 - RACLEUR

	P2R reference	163359
	Maker reference	AP0239820

AP0239820 - RESSORT DE TORSION

	P2R reference
	Maker reference	AP0239645

Ressort

	P2R reference
	Maker reference	AP0247690

Entretoise

	P2R reference
	Maker reference	AP0258937

BARILLET DE SELECTION

	P2R reference	43988
	Maker reference	AP0258903

AP0258903 - FOURCHETTE

	P2R reference	43989
	Maker reference	AP0258913

AP0258913 - FOURCHETTE 5/6 RS125

	P2R reference	43987
	Maker reference	AP0258893

AP0258893 - FOURCHETTE BOITE

	P2R reference
	Maker reference	AP0258880

Axe fourchette

	P2R reference	43594
	Maker reference	AP0236061

AP0236061 - PIGNON

	P2R reference	43595
	Maker reference	AP0236062

AP0236062 - PIGNON

	P2R reference	43596
	Maker reference	AP0236063

GEARBOX OUPUT SPROCKET 16 TEETH "PIAGGIO GENUINE PART" APRILIA 125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASSO -AP0236063-

	P2R reference	43597
	Maker reference	AP0236064

AP0236064 - PIGNON

	P2R reference	44258
	Maker reference	AP0297434

AP0297434 - LOCTITE ANTI SEIZE

	P2R reference	44554
	Maker reference	AP0897330

AP0897330 - GRAISSE LITHIUM

	P2R reference
	Maker reference	AP0281184

EQUIPAGE BOITE CPLT
