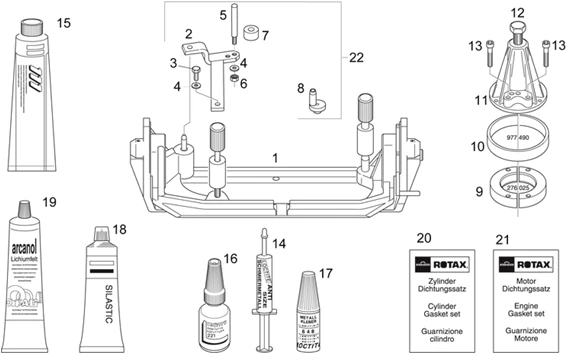

Outillage special : 31.20 OUTILS RÉPARATION II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/271/RS_125_1996-1998_(eng.123cc)_31.20.PNG)
1 |
AP0277917 - OUTIL SUPPORT MOT.CPL; More informationQuantity required : 1 |
||||||
|
2 |
Adaptateur cpl |
||||||
|
3 |
AP0940590 - VIS More informationQuantity required : 1 |
||||||
|
4 |
AP0250311 - RONDELLE More informationQuantity required : 2 |
||||||
|
5 |
Tige filetée |
||||||
|
6 |
AP0242209 - ECROU More informationQuantity required : 1 |
||||||
|
7 |
Entretoise |
||||||
|
8 |
Douille excentrique |
||||||
|
9 |
AP0276025 - DEMI-CLAVETTES More informationQuantity required : 2 |
||||||
|
10 |
Bague |
||||||
|
11 |
AP0876298 - EXTRACTEUR COMPLET More informationQuantity required : 1 |
||||||
|
12 |
AP0940755 - VIS More informationQuantity required : 1 |
||||||
|
13 |
AP0840681 - VIS More informationQuantity required : 4 |
||||||
|
14 |
AP0297434 - LOCTITE ANTI SEIZE More informationQuantity required : 1 |
||||||
|
15 |
AP0897161 - MOLYKOTE More informationQuantity required : 1 |
||||||
|
16 |
AP0899785 - LOCTITE VIOLET More informationQuantity required : 1 |
||||||
|
17 |
AP0899788 - LOCTITE VERTE More informationQuantity required : 1 |
||||||
|
18 |
AP0297386 - SILASTIC 732 RTV More informationQuantity required : 1 |
||||||
|
19 |
AP0897330 - GRAISSE LITHIUM More informationQuantity required : 1 |
||||||
|
20 |
AP0293317 - POCHETTE JOINTS H.M 123 More informationQuantity required : 1 |
||||||
|
21 |
Pochette joints cplt 123 |
||||||
|
22 |
Kit outil |
