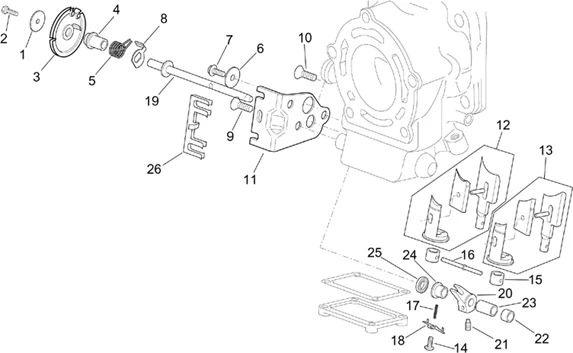

Moteur : 29.24 GROUPE SOUPAPES I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/555/RS_250_1995-1997_29.24.PNG)
1 |
Rondelle |
||||||
|
2 |
Vis |
||||||
|
3 |
AP8600057 - POULIE SOUP. DECH. More informationQuantity required : 1 |
||||||
|
4 |
AP8600056 - ENTRETOISE POUL.SOUP.DEC. More informationQuantity required : 1 |
||||||
|
5 |
AP8600055 - RESSORT SOUP. DECH. More informationQuantity required : 1 |
||||||
|
6 |
Rondelle |
||||||
|
7 |
AP8600053 - VIS More informationQuantity required : 1 |
||||||
|
8 |
AP8600052 - LEVIER SOUP. DECHARGE More informationQuantity required : 1 |
||||||
|
9 |
Vis |
||||||
|
10 |
AP8600050 - VIS More informationQuantity required : 1 |
||||||
|
11 |
Pl. câbl.soup. déc. |
||||||
|
12 |
AP8600035 - SOUP.DECHARGE DROITE More informationQuantity required : 1 |
||||||
|
13 |
AP8600036 - SOUP.DECHARGE GAUCHE More informationQuantity required : 1 |
||||||
|
14 |
AP8600037 - VIS More informationQuantity required : 3 |
||||||
|
15 |
AP8600038 - ENTRETOISE SOUP. DECH. More informationQuantity required : 2 |
||||||
|
16 |
Fiche soup. décharge |
||||||
|
17 |
AP8600040 - RESSORT More informationQuantity required : 2 |
||||||
|
18 |
AP8600041 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
19 |
Arbre soup. déch. |
||||||
|
20 |
Bras comm.soup.déch. |
||||||
|
21 |
AP8600044 - VIS More informationQuantity required : 1 |
||||||
|
22 |
AP8600045 - DOUILLE More informationQuantity required : 1 |
||||||
|
23 |
AP8600046 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
24 |
AP8600047 - DOUILLE SOUP.DECH. More informationQuantity required : 1 |
||||||
|
25 |
AP8600048 - JOINT SPI More informationQuantity required : 1 |
||||||
|
26 |
AP8102418 - GUIDE-CABLE COM SPPE More informationQuantity required : 1 |
