Vehicle Exploded View - APRILIA RS 250 1995-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

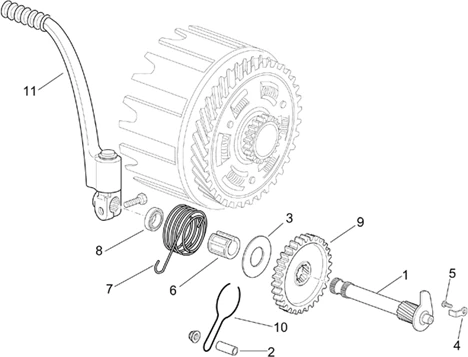

Moteur : 29.32 GROUPE DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/555/RS_250_1995-1997_29.32.PNG)
1 |
AP8600364 - ARBRE ALLUMAGE More informationQuantity required : 1 |
||||||
|
2 |
Entretoise |
||||||
|
3 |
Rondelle d'appui |
||||||
|
4 |
AP8600407 - PLAQUETTE BUTEE More informationQuantity required : 1 |
||||||
|
5 |
Vis |
||||||
|
6 |
AP8600368 - GUIDE RES.KICK STAR. More informationQuantity required : 1 |
||||||
|
7 |
AP8600369 - RESSORT KICK More informationQuantity required : 1 |
||||||
|
8 |
AP8600370 - JOINT SPI More informationQuantity required : 1 |
||||||
|
9 |
AP8600371 - ENGR. KICK STARTER More informationQuantity required : 1 |
||||||
|
10 |
But.ress.kick start. |
||||||
|
11 |
Levier démarr. cpl. |
