Vehicle Exploded View - APRILIA RS 50 1996-1998 APRILIA

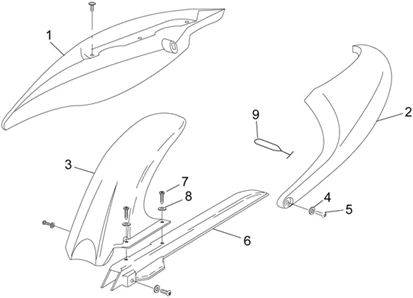

Chassis : 28.15 CARROSSERIE POSTERIEURE III
Carrosserie posterieure III
Search
Queue D, noir;

1
P2R reference P2R reference
Maker reference Maker reference AP8131812

Queue D, noir;

Queue D, gris m.;

1
P2R reference P2R reference
Maker reference Maker reference AP8238605

Queue D, gris m.;

Queue D, gris s.;

1
P2R reference P2R reference
Maker reference Maker reference AP8239385

Queue D, gris s.;

Queue D, gris/bleu;

1
P2R reference P2R reference
Maker reference Maker reference AP8239885

Queue D, gris/bleu;

Queue D, noir;

1
P2R reference P2R reference
Maker reference Maker reference AP8239906

Queue D, noir;

Queue D, noir trans.;

1
P2R reference P2R reference
Maker reference Maker reference AP8248140

Queue D, noir trans.;

Queue G, noire;

2
P2R reference P2R reference
Maker reference Maker reference AP8131813

Queue G, noire;

Queue G, grise m;

2
P2R reference P2R reference
Maker reference Maker reference AP8238606

Queue G, grise m;

Queue G, grise s.;

2
P2R reference P2R reference
Maker reference Maker reference AP8239386

Queue G, grise s.;

Queue G, gris/bleu;

2
P2R reference P2R reference
Maker reference Maker reference AP8239886

Queue G, gris/bleu;

Queue G, noire;

2
P2R reference P2R reference
Maker reference Maker reference AP8239907

Queue G, noire;

Queue G, noir trans.;

2
P2R reference P2R reference
Maker reference Maker reference AP8248141

Queue G, noir trans.;

AP8226126 - GARDE-BOUE ARRIERE NOIR;

3
P2R reference P2R reference 57613
Maker reference Maker reference AP8226126

AP8226126 - GARDE-BOUE ARRIERE NOIR;

More information

Quantity required : 1

AP8150178 - RONDELLE

4
P2R reference P2R reference 71833
Maker reference Maker reference AP8150178

AP8150178 - RONDELLE

More information

Quantity required : 4

AP8152269 - VIS

5
P2R reference P2R reference 71936
Maker reference Maker reference AP8152269

AP8152269 - VIS

More information

Quantity required : 4

Carter chaîne, noir;

6
P2R reference P2R reference
Maker reference Maker reference AP8230614

Carter chaîne, noir;

AP8150340 - VIS

7
P2R reference P2R reference 71864
Maker reference Maker reference AP8150340

AP8150340 - VIS

More information

Quantity required : 1

AP8150179 - RONDELLE

8
P2R reference P2R reference 71834
Maker reference Maker reference AP8150179

AP8150179 - RONDELLE

More information

Quantity required : 3

AP8120177 - ELASTIQUE SUPPORT FEU

9
P2R reference P2R reference 71386
Maker reference Maker reference AP8120177

AP8120177 - ELASTIQUE SUPPORT FEU

More information

Quantity required : 1
