Vehicle Exploded View - APRILIA RS 50 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

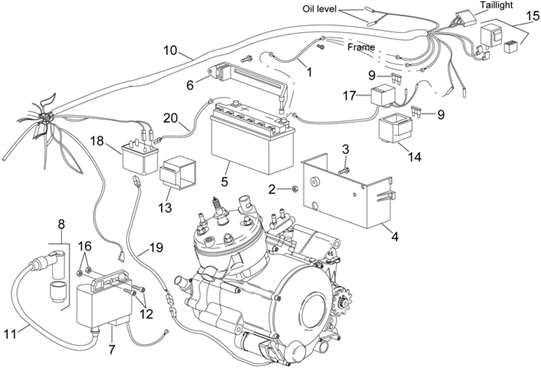

Chassis : 28.31 CIRCUIT ELECTRIQUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/266/RS_50_1996-1998_28.31.PNG)
1 |
Câblage masse-batterie |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
2 |
AP8150026 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
3 |
AP8152277 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
4 |
Support batterie; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
5 |
234390 - BATTERIE 12V/4 AH YUASA YB4L-B More informationQuantity required : 1 |
||||||
|
6 |
Couv. support batterie |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/6/8/img/56268.jpg)
7 |
IGNITION COIL "PIAGGIO GENUINE PART" APRILIA 50 RS 1993>2005, CLASSIC 1992>1999, MX 2004> -AP8212474- More informationQuantity required : 1 |
||||||
|
8 |
AP8212219 - PIPE BOUGIE BLINDEE More informationQuantity required : 1 |
||||||
|
9 |
CM225607 - FUSIBLE More informationQuantity required : 2 |
||||||
|
10 |
Câblage principal |
||||||
|
11 |
CABLE H.T. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
12 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 4 |
||||||
|
13 |
Caoutchouc |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/7/1/img/56271.jpg)
14 |
AP8212525 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
15 |
FLASHER UNIT "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER + MAXISCOOTER APRILIA + MOTO 125 CC -AP8124235 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
16 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/3/7/img/56237.jpg)
17 |
AP8212143 - BLOC FUSIBLES/DIODE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/5/8/img/45858.jpg)
18 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, PEGASO, CLASSIC -AP8112523- More informationQuantity required : 1 |
||||||
|
19 |
Câblage relais-démarr. |
||||||
|
20 |
Câblage batterie-relais |
