Vehicle Exploded View - APRILIA RSV4 1000 APRC Factory ABS 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

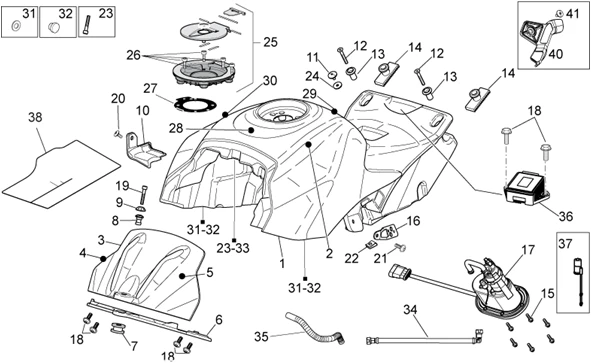

Chassis : 28.14 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/319/RSV4_1000_APRC_Factory_ABS_2013-2014_28.14.PNG)
1 |
2H000216000NI - RESERVOIR NOIR More informationQuantity required : 1 |
||||||
|
1 |
2H000217000NI - RESERVOIR NOIR More informationQuantity required : 1 |
||||||
|
1 |
B04512700XN2 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
1 |
B04622100XN2 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
2H000227 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/4/9/img/62549.jpg)
2 |
B045374 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/3/0/7/img/62307.jpg)
3 |
FUEL TANK COVER "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4 BLACK - RACING -B04454700BM More informationQuantity required : 1 |
||||||
|
3 |
B04526200XR4 - CACHE-RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/0/0/4/img/43004.jpg)
4 |
898586 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/0/0/5/img/43005.jpg)
5 |
898587 - DECALCO More informationQuantity required : 1 |
||||||
|
6 |
858885 - SUPPORT RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/1/img/71151.jpg)
7 |
AP8101372 - SILENTBLOC More informationQuantity required : 1 |
||||||
|
8 |
B044548 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/2/img/71902.jpg)
9 |
AP8150536 - ROSETTA SPECIALE More informationQuantity required : 1 |
||||||
|
10 |
893107 - PATTE TUYAU ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/2/0/1/6/img/52016.jpg)
11 |
FUEL TANK FASTENING SCREW "PIAGGIO GENUINE PARTS" APRILIA 1000-1100 RSV-4, TUONO V4, 750-900-1200 DORSODURO, 1200 CAPONORD -AP8161127- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/3/img/67143.jpg)
12 |
SCREW - FOR BAR ENDS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -576836- More informationQuantity required : 2 |
||||||
|
13 |
893273 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/2/3/img/46623.jpg)
14 |
AP8120663 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
15 |
AP8152273 - VIS BRIDE More informationQuantity required : 6 |
||||||
|
16 |
858886 - SUPPORT FLANC G More informationQuantity required : 1 |
||||||
|
17 |
B043925 - POMPE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
18 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/5/img/71875.jpg)
19 |
AP8150403 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
20 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/3/img/71903.jpg)
21 |
AP8150538 - VITE TBEI M5 X 10 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
22 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 1 |
||||||
|
23 |
AP8150505 - VITE TCEI M4X6 INOX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/7/img/71847.jpg)
24 |
AP8150255 - RONDELLE More informationQuantity required : 1 |
||||||
|
25 |
B043929 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
|
26 |
B043864 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/8/img/71238.jpg)
27 |
AP8104803 - GUARNIZIONE TAPPO BENZINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/6/7/5/img/37675.jpg)
28 |
2B000051 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/1/7/2/img/38172.jpg)
28 |
2H000481 - DECALCO More informationQuantity required : 1 |
||||||
|
28 |
899548 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/4/6/5/img/62465.jpg)
29 |
B045128 - DECALCO More informationQuantity required : 1 |
||||||
|
30 |
2H000226 - DECALCO More informationQuantity required : 1 |
||||||
|
30 |
B045373 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/6/5/img/56865.jpg)
31 |
AP8220366 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/3/7/img/49637.jpg)
32 |
RUBBER SPACER "PIAGGIO GENUINE PART" APRILIA DORSODURO, RSV-2, RSV-4, TUONO -AP8144158 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/1/img/71771.jpg)
33 |
AP8144565 - RONDELLA IN NYLON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/3/2/img/40632.jpg)
34 |
FUEL HOSE "PIAGGIO GENUINE PART" 1000 RSV-4, TUONO V4 -858884 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/9/4/img/42394.jpg)
35 |
895959 - TUYAU PURGE RESER. More informationQuantity required : 2 |
||||||
|
36 |
2D000037 - DETEC. INCLINAISON More informationQuantity required : 1 |
||||||
|
36 |
894604 - DETECTEUR More informationQuantity required : 1 |
||||||
|
37 |
899068 - DETECTEUR More informationQuantity required : 1 |
||||||
|
38 |
894198 - PROTECTION BR?LURE More informationQuantity required : 1 |
||||||
|
40 |
B044550 - SUPPORT More informationQuantity required : 1 |
||||||
|
41 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339 More informationQuantity required : 1 |
