Vehicle Exploded View - APRILIA RSV4 1000 APRC Factory ABS 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

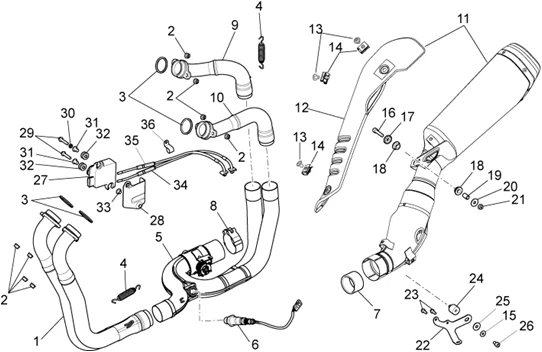

Chassis : 28.25 POT D'ÉCHAPPEMENT I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/319/RSV4_1000_APRC_Factory_ABS_2013-2014_28.25.PNG)
1 |
858738 - COLLECTEUR ECHAPP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
2 |
NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947- More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/2/8/5/img/214285.jpg)
3 |
JOINT ECHAPPEMENT EN SORTIE DE CULASSE ORIGINE PIAGGIO APRILIA 1000-1100 RSV-4 2011>, TUONO V4/MOTO-GUZZI 750 V7, 850 V85, V9 -2B012220- More informationQuantity required : 4 |
||||||
|
3 |
JOINT ECHAPPEMENT EN SORTIE DE CULASSE ORIGINE PIAGGIO APRILIA 1000-1100 RSV-4 2011>, TUONO V4/MOTO-GUZZI 750 V7, 850 V85, V9 -2B012220- More informationQuantity required : 4 |
||||||
|
4 |
AP8121170 - RESSORT More informationQuantity required : 3 |
||||||
|
5 |
85224R - COLLECTEUR ECHAPP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/9/img/67299.jpg)
6 |
LAMBDA SENSOR "PIAGGIO GENUINE PART" 50 LIBERTY 3V 2015> -584344- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/6/img/73436.jpg)
7 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4, TUONO/MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO -GU05128230- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/3/9/img/39139.jpg)
8 |
851586 - COLLIER More informationQuantity required : 1 |
||||||
|
9 |
858739 - COLLECTEUR ECHAPP. More informationQuantity required : 1 |
||||||
|
10 |
858740 - COLLECTEUR ECHAPP. More informationQuantity required : 1 |
||||||
|
11 |
897113 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
11 |
B043283 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
11 |
2B003035 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
12 |
898383 - PROTECTION BR?LURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/3/9/img/42939.jpg)
13 |
898385 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
15 |
SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
16 |
AP8150236 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/3/img/46743.jpg)
17 |
AP8121199 - BUSSOLA FISS.SILENZIATORI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/8/img/71768.jpg)
18 |
AP8144558 - GOMMINO SUPPORTO SILENZIATORE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/5/img/71465.jpg)
19 |
AP8121455 - DOUILLE ENTRETOISE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
20 |
AP8150018 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
21 |
AP8150431 - ECROU AUTOFR. BAS More informationQuantity required : 1 |
||||||
|
22 |
B045818 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
23 |
598839 - VIS More informationQuantity required : 2 |
||||||
|
24 |
894228 - SILENT BLOCK More informationQuantity required : 1 |
||||||
|
25 |
AP8150018 - RONDELLE More informationQuantity required : 1 |
||||||
|
26 |
AP8152112 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/8/7/1/img/37871.jpg)
27 |
EXHAUST VALVE ACTUATOR "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO V4, 1200 CAPONORD -2D000064 More informationQuantity required : 1 |
||||||
|
28 |
890928 - PROTECTION BR?LURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
29 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 2 |
||||||
|
30 |
AP8134640 - ENTRETOISE CORPS FILTRE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/8/img/46928.jpg)
31 |
AP8121725 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/4/img/97064.jpg)
32 |
AP8120223 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
33 |
840509 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
34 |
B045008 - CABLE More informationQuantity required : 1 |
||||||
|
35 |
B045009 - CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/7/img/69377.jpg)
36 |
845978 - COLLIER More informationQuantity required : 1 |
