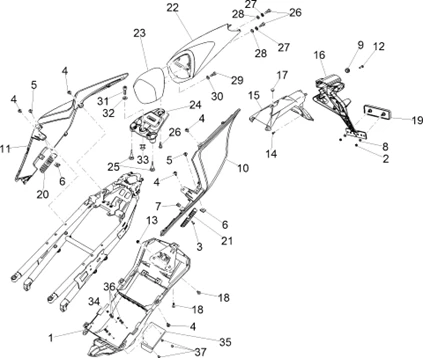

Carrosserie : 02.14 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1272/RSV4_1000_RR_E4_ABS_2019_(EMEA)_02.14.png)
1 |
858836 - FERMETURE INF. PORTE-SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
2 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/2/img/46742.jpg)
3 |
AP8121184 - VITE TBCE M4X14 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
4 |
2B014101 - INOX HEXAGON COCKET SCREWS M5X12 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/3/img/71903.jpg)
5 |
AP8150538 - VITE TBEI M5 X 10 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
7 |
AP8102381 - CLIP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
8 |
AP8150158 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
9 |
AP8112600 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
10 |
2H002954000XN6 - QUEUE G, NOIRE More informationQuantity required : 1 |
||||||
|
10 |
2H002944000XN2 - QUEUE G, ROUGE More informationQuantity required : 1 |
||||||
|
11 |
2H002943000XN2 - QUEUE D, NOIR More informationQuantity required : 1 |
||||||
|
11 |
2H002953000XN6 - QUEUE D, NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
12 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
13 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
14 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 4 |
||||||
|
15 |
2B001552 - PLAQUE PORT.PL.DE PO More informationQuantity required : 1 |
||||||
|
16 |
897482 - PORTE-PLAQUE More informationQuantity required : 1 |
||||||
|
17 |
894657 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
18 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.jpg)
19 |
AP8112916 - CATADIOPTRE FEU ARRIERE More informationQuantity required : 1 |
||||||
|
20 |
893108 - GRILLE DROITE More informationQuantity required : 1 |
||||||
|
21 |
893109 - GRILLE GAUCHE More informationQuantity required : 1 |
||||||
|
22 |
2H001710000XN6 - COUVRE-SELLE, NOIR More informationQuantity required : 1 |
||||||
|
22 |
2H001717000XN2 - COUVRE-SELLE, NOIR More informationQuantity required : 1 |
||||||
|
23 |
893112 - COUSSIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/0/3/img/40603.jpg)
24 |
858838 - BASE COUVRE-SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/5/img/72275.jpg)
25 |
AP8220238 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
26 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
27 |
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/6/img/71406.jpg)
28 |
AP8120592 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
29 |
AP8150421 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/1/img/71771.jpg)
30 |
AP8144565 - RONDELLA IN NYLON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
31 |
SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043- More informationQuantity required : 1 |
||||||
|
32 |
AP8150158 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/9/6/3/img/41963.jpg)
33 |
893259 - PIVOT FIXATION More informationQuantity required : 1 |
||||||
|
34 |
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450- More informationQuantity required : 3 |
||||||
|
35 |
B043880 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
36 |
RUBBER SPACER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8102504- More informationQuantity required : 3 |
||||||
|
37 |
B045263 - RIVET More informationQuantity required : 3 |
