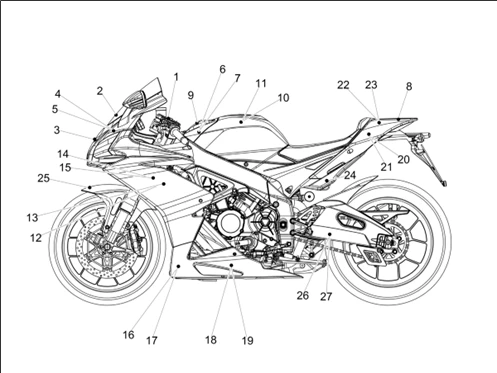

Carrosserie : 02.19 DÉCALCO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1272/RSV4_1000_RR_E4_ABS_2019_(EMEA)_02.19.png)
1 |
893819 - DECALCO More informationQuantity required : 1 |
||||||
|
2 |
2H002970 - DECALCO More informationQuantity required : 1 |
||||||
|
2 |
2H002955 - DECALCO More informationQuantity required : 1 |
||||||
|
3 |
2H002916 - DECALCO More informationQuantity required : 1 |
||||||
|
4 |
2H002956 - DECALCO More informationQuantity required : 1 |
||||||
|
4 |
2H002971 - DECALCO More informationQuantity required : 1 |
||||||
|
5 |
2H002957 - DECALCO More informationQuantity required : 1 |
||||||
|
5 |
2H002972 - DECALCO More informationQuantity required : 1 |
||||||
|
6 |
2H002958 - DECALCO More informationQuantity required : 1 |
||||||
|
6 |
2H002973 - DECALCO More informationQuantity required : 1 |
||||||
|
7 |
2H002959 - DECALCO More informationQuantity required : 1 |
||||||
|
7 |
2H002974 - DECALCO More informationQuantity required : 1 |
||||||
|
8 |
2H001726 - DECALCO More informationQuantity required : 1 |
||||||
|
8 |
2H001733 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/7/9/9/img/108799.jpg)
9 |
2H000874 - DECALCO More informationQuantity required : 1 |
||||||
|
10 |
2H000767 - STICKER More informationQuantity required : 1 |
||||||
|
10 |
2H000938 - DECAL More informationQuantity required : 1 |
||||||
|
11 |
2H000768 - STICKER More informationQuantity required : 1 |
||||||
|
11 |
2H000939 - DECAL More informationQuantity required : 1 |
||||||
|
12 |
2H002960 - DECALCO More informationQuantity required : 1 |
||||||
|
12 |
2H002975 - DECALCO More informationQuantity required : 1 |
||||||
|
13 |
2H002961 - DECALCO More informationQuantity required : 1 |
||||||
|
13 |
2H002976 - DECALCO More informationQuantity required : 1 |
||||||
|
14 |
2H002962 - DECALCO More informationQuantity required : 1 |
||||||
|
14 |
2H002977 - DECALCO More informationQuantity required : 1 |
||||||
|
15 |
2H002963 - DECALCO More informationQuantity required : 1 |
||||||
|
15 |
2H002978 - DECALCO More informationQuantity required : 1 |
||||||
|
16 |
2H002964 - DECALCO More informationQuantity required : 1 |
||||||
|
16 |
2H002979 - DECALCO More informationQuantity required : 1 |
||||||
|
17 |
2H002965 - DECALCO More informationQuantity required : 1 |
||||||
|
17 |
2H002980 - DECALCO More informationQuantity required : 1 |
||||||
|
18 |
2H002966 - DECALCO More informationQuantity required : 1 |
||||||
|
18 |
2H002981 - DECALCO More informationQuantity required : 1 |
||||||
|
19 |
2H002967 - DECALCO More informationQuantity required : 1 |
||||||
|
19 |
2H002982 - DECALCO More informationQuantity required : 1 |
||||||
|
20 |
2H002968 - DECALCO More informationQuantity required : 1 |
||||||
|
20 |
2H002983 - DECALCO More informationQuantity required : 1 |
||||||
|
21 |
2H002969 - DECALCO More informationQuantity required : 1 |
||||||
|
21 |
2H002984 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/7/5/4/img/108754.jpg)
22 |
2H000794 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
22 |
2H002985 - DECALCO More informationQuantity required : 1 |
||||||
|
23 |
2H000795 - DECAL More informationQuantity required : 1 |
||||||
|
23 |
2H002986 - DECALCO More informationQuantity required : 1 |
||||||
|
24 |
2H000487 - DECALCO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/8/4/img/145884.jpg)
25 |
2H001617 - DECALCO More informationQuantity required : 1 |
||||||
|
26 |
895352 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/3/9/img/127139.jpg)
27 |
895353 - DECALCO More informationQuantity required : 1 |
