Vehicle Exploded View - GILERA RUNNER 50 Purejet 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

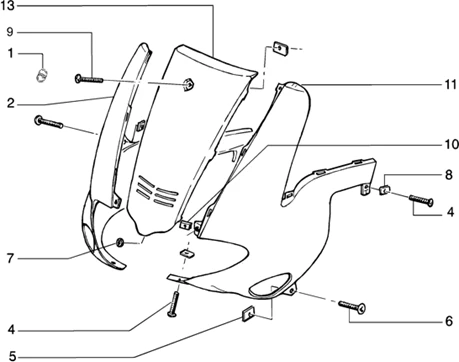

Châssis : T23 CARÉNAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/656/Runner_50_Purejet_1998-2005_T23.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/2/7/img/80227.jpg)
1 |
EMBLEM - "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2005> -573508- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
1 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 2 |
||||||
1 |
299107000C - PROTECTION INF EX-299107 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/7/8/img/78078.jpg)
1 |
LEFT FOOTREST MAT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -299775- More informationQuantity required : 1 |
||||||
|
1 |
298132000P - PROTECTION SUP More informationQuantity required : 1 |
||||||
|
2 |
42960000F2 - FLANC AVD RUNNER More informationQuantity required : 1 |
||||||
|
2 |
42960000G9 - FLANC AV DROIT RUNNER JAUNE 384 More informationQuantity required : 1 |
||||||
|
2 |
42960050E1 - FLANC AV DROIT RUNNER GRIS 121 More informationQuantity required : 1 |
||||||
|
2 |
42960050R7 - FLANC AV DROIT RUNNER ROUGE 894 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
2 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 4 |
||||||
|
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 3 |
||||||
|
2 |
RIGHT FOOTREST MAT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -299776- More informationQuantity required : 1 |
||||||
|
3 |
6203100090 - COUVERCLE BATTERIE RUNNER NOIR 94 More informationQuantity required : 1 |
||||||
|
3 |
62031000A7 - TRAPPE VISITE More informationQuantity required : 1 |
||||||
|
3 |
62031000E1 - TRAPPE VISITE More informationQuantity required : 1 |
||||||
|
3 |
62031000F2 - TRAPPE VISITE More informationQuantity required : 1 |
||||||
|
3 |
62031000R7 - TRAPPE VISITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
3 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 13 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/6/4/0/img/80640.jpg)
3 |
GRID -AIRFLOW-LEFT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -5756580028 More informationQuantity required : 1 |
||||||
|
3 |
GRID -AIRFLOW-RIGHT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -5756590028- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
3 |
015996 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 5 |
||||||
|
4 |
42980000F2 - AILE AR DROITE RUNNER GRIS EXCALIBUR 738 More informationQuantity required : 1 |
||||||
|
4 |
4298005090 - AILE AR DROITE RUNNER NOIR 94 More informationQuantity required : 1 |
||||||
|
4 |
4298005 - AILE AR DROITE RUNNER BRUT More informationQuantity required : 1 |
||||||
|
4 |
42980050E1 - AILE AR DROITE RUNNER GRIS 121 More informationQuantity required : 1 |
||||||
|
4 |
42980050R7 - AILE AR DROITE RUNNER ROUGE 894 More informationQuantity required : 1 |
||||||
|
4 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 4 |
||||||
|
4 |
LEFT FOOTREST "PIAGGIO GENUINE PART" PIAGGIO 50-125 RUNNER -298133000P- More informationQuantity required : 1 |
||||||
|
4 |
298134000P - REPOSE PIED D More informationQuantity required : 1 |
||||||
|
4 |
299384000P - PROTECTION AR More informationQuantity required : 1 |
||||||
|
5 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/9/img/63849.jpg)
5 |
008265 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
5 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
6 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 4 |
||||||
|
6 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
|
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
|
7 |
272861 - BOUCHON More informationQuantity required : 1 |
||||||
|
7 |
576008 - LEVIER More informationQuantity required : 1 |
||||||
|
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
8 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/6/0/img/63860.jpg)
8 |
008808 - EPINGLE S00880800 More informationQuantity required : 1 |
||||||
|
8 |
298893000P - PRISE AIR DRT NOIR More informationQuantity required : 1 |
||||||
|
8 |
PRISE AIR |
||||||
|
8 |
62284300BH - PRISE AIR DRT More informationQuantity required : 1 |
||||||
|
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 3 |
||||||
|
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 1 |
||||||
|
9 |
465054 - RESSORT More informationQuantity required : 1 |
||||||
|
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/5/8/img/81358.jpg)
9 |
LUGGAGE RACK COVER "PIAGGIO GENUINE PART" PIAGGIO 50-125 RUNNER 1998>2005 -577832 More informationQuantity required : 1 |
||||||
|
10 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
10 |
299387 - RESSORT More informationQuantity required : 1 |
||||||
|
10 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 1 |
||||||
|
11 |
42950000F2 - FLANC AVG RUNNER More informationQuantity required : 1 |
||||||
|
11 |
42950000G9 - FLANC AV GAUCHE RUNNER JAUNE 384 More informationQuantity required : 1 |
||||||
|
11 |
42950050E1 - FLANC AV GAUCHE RUNNER GRIS CENDRE 121 More informationQuantity required : 1 |
||||||
|
11 |
42950050R7 - FLANC AV GAUCHE RUNNER ROUGE 894 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/9/0/img/96290.jpg)
11 |
CM179306 - VIS More informationQuantity required : 2 |
||||||
|
11 |
576719 - CLE EBAUCHE RUNNER 50/125/180/200 More informationQuantity required : 1 |
||||||
|
11 |
298892000P - PRISE AIR GAUCHE NOIR More informationQuantity required : 1 |
||||||
|
11 |
PRISE AIR |
||||||
|
11 |
62284400BH - PRISE AIR GAU More informationQuantity required : 1 |
||||||
|
11 |
CM179306 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/9/4/3/img/80943.jpg)
12 |
576718 - GROUPE SERRURE RUNNER 50/125/180/200 More informationQuantity required : 1 |
||||||
|
12 |
LEFT FOOTREST "PIAGGIO GENUINE PART" PIAGGIO 50-125 RUNNER -298133000P- More informationQuantity required : 1 |
||||||
|
12 |
298134000P - REPOSE PIED D More informationQuantity required : 1 |
||||||
|
12 |
LUGGAGE RACK "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER OLD MODEL -6208840095- More informationQuantity required : 1 |
||||||
|
12 |
LUGGAGE RACK "PIAGGIO GENUINE PART" 50 RUNNER 1998>2005 BLACK -6208840090- More informationQuantity required : 1 |
||||||
|
13 |
57785300E1 - FACE AVT RUNNER FL NOIR 121 More informationQuantity required : 1 |
||||||
|
13 |
57785300NC - FACE AVT RUNNER FL CARBON 167 More informationQuantity required : 1 |
||||||
|
13 |
57785300R7 - TABLIER AV RUNNER FL 894 More informationQuantity required : 1 |
||||||
|
13 |
57487500F2 - FLANC GAU.RUNNER More informationQuantity required : 1 |
||||||
|
13 |
5748755090 - AILE AR GAUCHE RUNNER NOIR 94 More informationQuantity required : 1 |
||||||
|
13 |
5748755 - AILE AR GAUCHE RUNNER BRUT More informationQuantity required : 1 |
||||||
|
13 |
57487550E1 - AILE AR GAUCHE RUNNER GRIS 121 More informationQuantity required : 1 |
||||||
|
13 |
57487550R7 - AILE AR GAUCHE RUNNER ROUGE DRAGON 894 More informationQuantity required : 1 |
||||||
|
13 |
GRID -AIRFLOW-LEFT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -5756580028 More informationQuantity required : 1 |
||||||
|
13 |
GRID -AIRFLOW-RIGHT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -5756590028- More informationQuantity required : 1 |
||||||
|
13 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498- More informationQuantity required : 2 |
||||||
|
14 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
14 |
003054 - RONDELLE S00305400 More informationQuantity required : 1 |
||||||
|
14 |
DECOR GILERA LAT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
15 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/5/9/img/81359.jpg)
15 |
LUGGAGE RACK GRID "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -577833- More informationQuantity required : 1 |
||||||
|
16 |
5739140029 - MONOGRAMME GILERA BLANC More informationQuantity required : 1 |
||||||
|
16 |
5739140034 - AUTOCOLLANT GILERA ROUGE C30 More informationQuantity required : 1 |
||||||
|
18 |
DECOR GILERA LAT |
