Vehicle Exploded View - GILERA RUNNER 50 Purejet 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

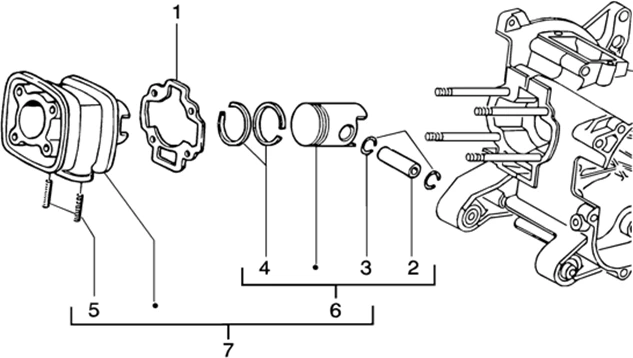

Moteur : T4 ENSEMBLE CYLINDRE-PISTON-AXE DE PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/656/Runner_50_Purejet_1998-2005_T4.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/2/img/68662.jpg)
1 |
CYLINDER BASE GASKET- 0,4MM "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER, DNA LIQUIDE -827301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/3/img/68663.jpg)
1 |
CYLINDER BASE GASKET 0,6MM "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER, DNA L.C. -827303 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/1/img/68861.jpg)
1 |
CYLINDER BASE GASKET "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER, DNA MOTEUR LIQUIDE -829633 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/2/img/65982.jpg)
2 |
PISTON PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC -239404 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/3/img/65983.jpg)
3 |
STOP RING FOR PISTON "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC 2 STROKE -239455 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/1/img/68541.jpg)
4 |
PISTON RING- "PIAGGIO GENUINE PART" 50 TYPHOON 1995>, NRG 1998>, ZIP 2000>, VESPA LX 2005>, LIBERTY 1998>,FLY 2 STROKE 2005>/APRILIA 50 SR 2010>/GILERA 50 STALKER 1997>, RUNNER 1997> (VENDU A L UNITE) -825416 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/6/img/68706.jpg)
4 |
PISTON RING- "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -827853 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/7/img/68707.jpg)
4 |
PISTON RING- "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -827854- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/1/img/65981.jpg)
5 |
EXHAUST STUD BOLT M6 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -239397 More informationQuantity required : 2 |
||||||
6 |
Gr.piston |
||||||
|
6 |
Gr.piston |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/5/3/img/66753.jpg)
6 |
PISTON "PIAGGIO GENUINE PART" 50 ZIP 1996>, TYPHOON 1996>, FLY 2 STROKE 2005>, LIBERTY 2 STROKE 1998>, NRG 1998>, VESPA LX 2 STROKE, VESPA-S 2 STROKE 2007>/GILERA 50 RUNNER, STALKER/APRILIA 50 SR 2012> CAT-1(M) -4878020001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/5/4/img/66754.jpg)
6 |
PISTON "PIAGGIO GENUINE PART" 50 ZIP 1995>, TYPHOON 1995>, NRG 1997>, LIBERTY 2000>, FLY 2005>, VESPA LX 2005>/GILERA 50 RUNNER 1997>, STALKER 1997>/APRILIA 50 SR 2003> CAT-2(N) -4878020002 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/1/img/69071.jpg)
6 |
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" 50 NRG 2005>2015/RUNNER 50 2005>2012 LIQUIDE -833598 More informationQuantity required : 1 |
||||||
|
7 |
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" 50 NRG 2005>2015/RUNNER 50 2005>2012 LIQUIDE -833598 More informationQuantity required : 1 |
