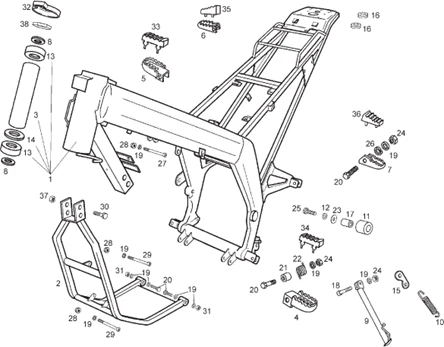

Vehicle Exploded View - DERBI SENDA SM 125 Senda SM 125 Baja 4T E3 2010 (EMEA)

	P2R reference	190401
	Maker reference	8653285

8653285 - R-CTO CHASIS C/BASCULANTE SDA BAJA

	P2R reference	190402
	Maker reference	00H00112941A

00H00112941A - SCTO.CUNA INF.CUAD.125 GR.GEN. (C)

	P2R reference	65042
	Maker reference	00H06303401

00H06303401 - TUBE SEPARATION ROULEMENT D

	P2R reference	64667
	Maker reference	00H02201312

LEFT RIDER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H02201312-

	P2R reference	64666
	Maker reference	00H02201302

RIGHT RIDER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H02201302-

	P2R reference	63884
	Maker reference	00D01520096

RIGHT PASSENGER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01520096-

	P2R reference	63885
	Maker reference	00D01540456

LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01520456-

	P2R reference	63672
	Maker reference	000089026305

STEERING FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00008902630

	P2R reference	190547
	Maker reference	00H00826011A

00H00826011A - BEQUILLE LATERALE

	P2R reference	64315
	Maker reference	00H00804081

SPRING - FOR STAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00804081

	P2R reference	64614
	Maker reference	00H01801771

CHAIN GUIDE WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H01801771

	P2R reference	63606
	Maker reference	000000562055

STEERING COLUMN BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00000056205-

	P2R reference	65048
	Maker reference	00H06500451

00H06500451 - RONDELLE COUSSINET TUBE DIRECT

	P2R reference	64310
	Maker reference	2B004468

STAND SPRING PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -2B004468-

	P2R reference	188284
	Maker reference	00H00501761

00H00501761 - SILENTBLOC

	P2R reference	63631
	Maker reference	000025187905

SPACER- FOR CHAIN GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002518790-

	P2R reference	64316
	Maker reference	00H00805072

SCREW - FOR STAND FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00805072

	P2R reference	63787
	Maker reference	004020800015

ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001-

	P2R reference	63713
	Maker reference	000220840215

SCREW - FOR FOOTREST M8X40 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00022084021-

	P2R reference	63628
	Maker reference	000022151525

RING FOR FOOTREST LINK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RX, SX -00002215152-

	P2R reference	64954
	Maker reference	00H04903292

RIDER FOOTREST SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H04903292-

	P2R reference	63639
	Maker reference	000033065705

00003306570 - RONDELLE FIX BOITE A OUTILS

	P2R reference	63715
	Maker reference	000231080005

NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000-

	P2R reference	63621
	Maker reference	000020845145

00002084514 - TORN.C/ALL.8M125X45 DIN912 12.9 DAC

	P2R reference	63623
	Maker reference	000020865315

00002086531 - TORN.C/ALL.8M125X65 DIN912 12.9 DAC

	P2R reference	63720
	Maker reference	000260080015

00026008001 - ECROU

	P2R reference	64704
	Maker reference	00H02500272

SCREW - ENGINE FIXING SCREW M8 "PIAGGIO GENUINE PART" 50 VESPA LX, PRIMAVERA, SPRINT/GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02500272-

	P2R reference	63767
	Maker reference	002620800225

00262080022 - ECROU

	P2R reference	63868
	Maker reference	00D00200761

00D00200761 - CACHE POUSSIERE DIRECTION

	P2R reference	64538
	Maker reference	00H01502101

RIGHT/LEFT FOOTREST MAT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H01502101

	P2R reference	64536
	Maker reference	00H01501501

00H01501501 - REPOSE-PIED GAUCHE

	P2R reference	64542
	Maker reference	00H01503101

00H01503101 - PROTECTEUR REPOSE-PIED DROI

	P2R reference	64540
	Maker reference	00H01502501

00H01502501 - PROTECTEUR REPOSE-PIED GAUC

	P2R reference	188983
	Maker reference	863908

863908 - ECROU HEX.A/BRIDE 10M150 DIN-69

	P2R reference	63924
	Maker reference	00G00200112

NUT - FOR UPPER FORK PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00G00200112
