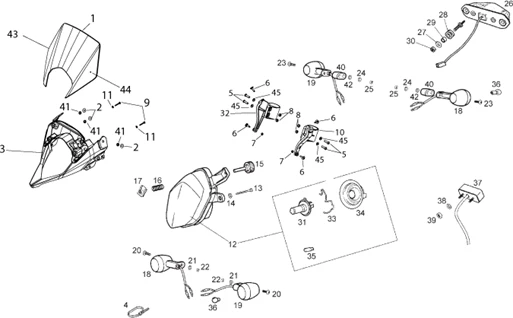

Vehicle Exploded View - DERBI SENDA SM 125 Senda SM 125 Baja 4T E3 2010 (EMEA)

	P2R reference	70048
	Maker reference	86420600W0B

FRONT FAIRING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR 2011> WHITE -86420600W0B-

	P2R reference	70049
	Maker reference	86420600W0N

HEADLIGHT FAIRING-BLACK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -86420600W0N-

	P2R reference	71410
	Maker reference	AP8120622

FRONT DUST COVER RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8120622-

	P2R reference	70273
	Maker reference	866980

FRONT HEADLIGHT SUPPORT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -866980-

	P2R reference	63869
	Maker reference	00D00900531

RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531-

	P2R reference	153427
	Maker reference	AP8152060

AP8152060 - VIS

	P2R reference	71961
	Maker reference	AP8152302
	Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

	P2R reference	214483
	Maker reference	2B014101

2B014101 - INOX HEXAGON COCKET SCREWS M5X12

	P2R reference	63589
	Maker reference	000000230505

00000023050 - ECROU

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	63678
	Maker reference	000110325015

SCREW - (3,6X25) FOR HEADLIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00011032501

	P2R reference	70257
	Maker reference	866936

LEFT FORKHEAD SUPPORT "PIAGGIO GENUINE PART" GILERA 50 SMT RACING 2011> -866936-

	P2R reference
	Maker reference	031040

VIS

	P2R reference	189934
	Maker reference	861047

861047 - FEU AVANT

	P2R reference	63678
	Maker reference	000110325015

SCREW - (3,6X25) FOR HEADLIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00011032501

	P2R reference
	Maker reference	031040

VIS

	P2R reference	64378
	Maker reference	00H01003101

SCREW - FOR HEADLIGHT ADJUSTING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00H0100310

	P2R reference	64687
	Maker reference	00H02302501

HEADLIGHT ADJUSTMENT SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2011> -00H02302501

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	64597
	Maker reference	00H01704311

00H01704311 - CLIGNOTANTS AR. GAUCHE

	P2R reference	64598
	Maker reference	00H01706021

00H01706021 - GLIGNOTEURS AR. DROITE

	P2R reference	72330
	Maker reference	AP8224470

AP8224470 - VIS

	P2R reference	63876
	Maker reference	00D01200171

WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171-

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

	P2R reference	63645
	Maker reference	000040550005

00004055000 - VIS 5X80X50

	P2R reference	69480
	Maker reference	847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

	P2R reference	63589
	Maker reference	000000230505

00000023050 - ECROU

	P2R reference	64386
	Maker reference	00H01009321

TAILLIGHT- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H01009321

	P2R reference	63876
	Maker reference	00D01200171

WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171-

	P2R reference	63673
	Maker reference	000089150205

SILENT-BLOC FOR RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2018/APRILIA 50 RS 2006>2018, SX, RX 2006>2018 - 00008915020-

	P2R reference	63882
	Maker reference	00D01500471

SPACER-RING NUT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00D01500471-

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

	P2R reference	154568
	Maker reference	00G01000131

00G01000131 - AMPOULE 12V-35/35

	P2R reference	70256
	Maker reference	866935

RIGHT FORKHEAD SUPPORT "PIAGGIO GENUINE PART" GILERA 50 SMT RACING 2011> -866935-

	P2R reference	189936
	Maker reference	862415

862415 - RESSORT

	P2R reference	189937
	Maker reference	862896

862896 - COIFFE

	P2R reference	64379
	Maker reference	00H01003131

00H01003131 - TUBE PHARE

	P2R reference	71603
	Maker reference	AP8127489

AP8127489 - LAMPE RY10W 12V

	P2R reference	64996
	Maker reference	00H05700471

00H05700471 - FEU REGISTRE

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

	P2R reference	63589
	Maker reference	000000230505

00000023050 - ECROU

	P2R reference	188705
	Maker reference	00F01701191

00F01701191 - SUPL.GLIGNOTEURS

	P2R reference	69844
	Maker reference	861239

WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239-

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

	P2R reference	190446
	Maker reference	8665600003

8665600003 - DECALCO

	P2R reference	190447
	Maker reference	8665620003

8665620003 - DECALCO

	P2R reference	71888
	Maker reference	AP8150450

WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450-
