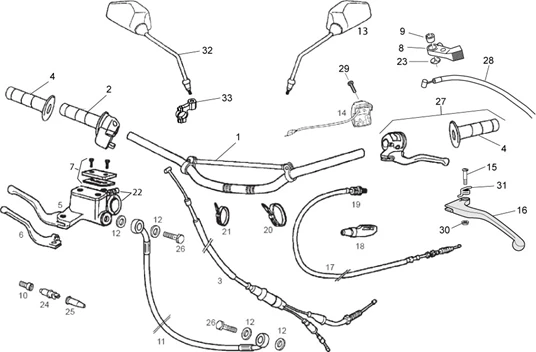

Vehicle Exploded View - DERBI SENDA SM 50 Senda SM 50 DRD Racing 2T E2 2010-2013 (EMEA)

	P2R reference	70294
	Maker reference	8671650001

HANDLEBAR "PIAGGIO GENUINE PART" GILERA 50 SMT RACING 2011>/APRILIA 50 SX, RX 2011> -8671650001

	P2R reference	64654
	Maker reference	00H02101621

THROTTLE HANDLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006> -00H02101621-

	P2R reference	70291
	Maker reference	2B004384

THROTTLE CABLE KIT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -2B004384-

	P2R reference	72264
	Maker reference	AP8218628

HAND GRIP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX (PAIR) -AP8218628-

	P2R reference	70268
	Maker reference	866959

866959 - MA?T. CYL. FREIN AV

	P2R reference	70299
	Maker reference	867234

FRONT BRAKE LEVER-"PIAGGIO GENUINE PART" GILERA 50 SMT 2011> (SHORT - ADJUSTABLE) -867234

	P2R reference	70300
	Maker reference	867235

867235 - KIT COUVERCLE POMPE

	P2R reference	72261
	Maker reference	AP8218115

CHOKE COMMAND LEVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -AP8218115-

	P2R reference	72262
	Maker reference	AP8218116

CONE COUPLING FOR CHOKE CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -AP8218116

	P2R reference	64330
	Maker reference	00H00900871

SPACER- FOR STOP LIGHT SWITCH "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>/APRILIA 50 SX, RX -00H00900871

	P2R reference	70292
	Maker reference	867139

867139 - TUBE FREIN AV

	P2R reference	70303
	Maker reference	867238

BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238

	P2R reference	64123
	Maker reference	00G04613921

MIRROR- LEFT - F1 TYPE - "PIAGGIO GENUINE PART" GILERA 50 SMT RACING -00G04613921-

	P2R reference	64692
	Maker reference	00H02305381

SWITCH "PIAGGIO GENUINE PART" 50 A BOITE GILERA 50 SMT, RCR 2006-/APRILIA 50 SX, RX 2006- 00H02305381-

	P2R reference	72587
	Maker reference	AP8700760

SCREW - FOR LEFT LEVER FASTENING "PIAGGIO GENUINE PART" 50 SR, MOJITO, RALLY, GULLIVER, RX, SX -AP8700760-

	P2R reference	64335
	Maker reference	00H00903291

CLUTCH LEVER- "PIAGGIO GENUINE PART" GILERA 50 SMT 2013> 170 MM ALU -00H00903291

	P2R reference	151767
	Maker reference	2B005231

CABLE KIT FOR CLUTCH COMMAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006/APRILIA 50 SX, RX 2006> -2B005231

	P2R reference	64653
	Maker reference	00H02101011

CLUTCH LEVER GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02101011-

	P2R reference	63902
	Maker reference	00F00920551

SCREW - FOR CLUTCH CABLE ADJUSTER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006-, APRILIA 50 RX,SX 2006-2013 (M6 L27MM) -00F00920551-

	P2R reference	63899
	Maker reference	00F00900531

00F00900531 - COLLIER

	P2R reference	63869
	Maker reference	00D00900531

RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531-

	P2R reference	70301
	Maker reference	867236

867236 - KIT PLAQUETTE FIXATION POMPE

	P2R reference	72263
	Maker reference	AP8218117

CLIP FOR CHOKE CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -AP8218117-

	P2R reference	63870
	Maker reference	00D01000701

STOP LIGHT SWITCH "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006 -00D01000701

	P2R reference	63654
	Maker reference	000050107605

00005010760 - CAPUCHON

	P2R reference	70302
	Maker reference	867237

867237 - RACCORD

	P2R reference	70260
	Maker reference	2B005236

COMPLETE CLUTCH HANDLE "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2011>/APRILIA 50 RX, SX 2011 -866942-

	P2R reference	70259
	Maker reference	866941

CHOKE TRANSMISSION CABLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>/APRILIA 50 SX, RX -866941-

	P2R reference	71361
	Maker reference	AP8118492

AP8118492 - VIS CALOTTE;

	P2R reference	71360
	Maker reference	AP8118490

AP8118490 - ECROU

	P2R reference	65772
	Maker reference	177072

CLUTCH LEVER SPRING "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR -177072-

	P2R reference	64028
	Maker reference	00G02212671

MIRROR- RIGHT "F1 TYPE" - "PIAGGIO GENUINE PART" GILERA 50 SMT RACING -00G02212671

	P2R reference	70314
	Maker reference	867272

867272 - BRIDE
