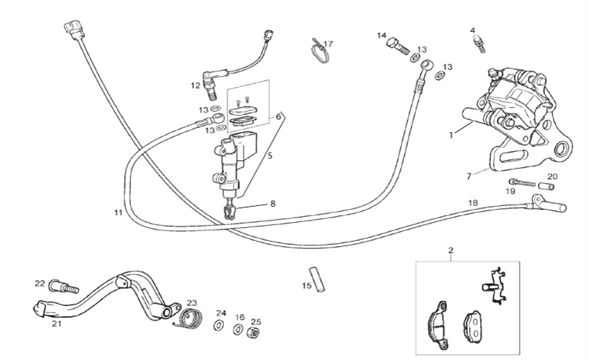

Vehicle Exploded View - DERBI SENDA SM 50 Senda SM 50 DRD Racing 2T E2 2010-2013 (EMEA)

	P2R reference	70270
	Maker reference	866962

REAR BRAKE CALIPER "PIAGGIO GENUINE PART" GILERA 50 SMT RACING/APRILIA 50 SX, RX -866962

	P2R reference	70307
	Maker reference	867242

BRAKE PADS - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>/APRILIA SX-RX 2011> (PAIR) -867242

	P2R reference	70305
	Maker reference	867240

SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, 50 SX, RX 2011>, 50 SMT, RCR 2011> -867240

	P2R reference	70264
	Maker reference	866955

REAR BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>/APRILIA 50 SX, RX 2011> -866955

	P2R reference	70306
	Maker reference	867241

867241 - KIT COUVERCLE POMPE

	P2R reference	70275
	Maker reference	866992

SUPPORT-FOR REAR BRAKE CALIPER "PIAGGIO GENUINE PART" GILERA 50 SMT RACING 2011>/APRILIA 50 SX, RX FACTORY 2018> -866992-

	P2R reference	64404
	Maker reference	00H01103611

REAR BRAKE ROD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX (VENDU AVEC AXE DE FIXATION) -00H01103611

	P2R reference	70293
	Maker reference	867140

867140 - TUYAU FREIN ARRIERE

	P2R reference	64372
	Maker reference	00H01001701

STOP LIGHT SWITCH "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H01001701

	P2R reference	70303
	Maker reference	867238

BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238

	P2R reference	70302
	Maker reference	867237

867237 - RACCORD

	P2R reference	70061
	Maker reference	864587

864587 - PROTECTOR GUIA CABLES MUL125

	P2R reference	63787
	Maker reference	004020800015

ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001

	P2R reference	63899
	Maker reference	00F00900531

00F00900531 - COLLIER

	P2R reference	70025
	Maker reference	863307

SPEED SENSOR "PIAGGIO GENUINE PART" GILERA 50 SMT 2011>, RCR 2011>/APRILIA 50 SX 2011>, RX 2011> -863307

	P2R reference	63664
	Maker reference	000080615005

00008061500 - VIS A TETE RONDE 6M100X16

	P2R reference	70276
	Maker reference	866994

866994 - ENTRETOISE

	P2R reference	69950
	Maker reference	86239R

REAR BRAKE PEDAL "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA SX, RX -86239R

	P2R reference	64392
	Maker reference	00H01100172

SCREW - FOR REAR BRAKE PEDAL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01100172

	P2R reference	151763
	Maker reference	2B005020

RETURN SPRING FOR REAR BRAKE PEDAL "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR/APRILIA 50 SX, RX 2006> -2B005020

	P2R reference	63655
	Maker reference	000055275405

SPACER- FOR REAR BRAKE COMMAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00005527540

	P2R reference	63715
	Maker reference	000231080005

NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000
