Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003 APRILIA

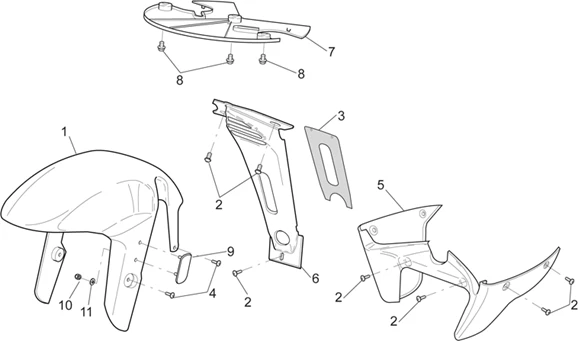

Chassis : 28.13 CARROSSERIE AV. - GARDE-BOUE AV
Carrosserie av. - Garde-boue AV
Search
Gard-b AV black c.;

1
P2R reference P2R reference
Maker reference Maker reference AP8126798

Gard-b AV black c.;

Gard-b AV red fire;

1
P2R reference P2R reference
Maker reference Maker reference AP8126852

Gard-b AV red fire;

Gard-b AV black c.;

1
P2R reference P2R reference
Maker reference Maker reference AP8126857

Gard-b AV black c.;

G.-b. av.p.jaune;

1
P2R reference P2R reference
Maker reference Maker reference AP8126890

G.-b. av.p.jaune;

G.-b. av.p.jaune;

1
P2R reference P2R reference
Maker reference Maker reference AP8126891

G.-b. av.p.jaune;

AP8126906 - GARDE-BOUE AVANT PEINT GRIS;

1
P2R reference P2R reference 47920
Maker reference Maker reference AP8126906

AP8126906 - GARDE-BOUE AVANT PEINT GRIS;

More information

Quantity required : 1

Garde-boue avant peint gris;

1
P2R reference P2R reference
Maker reference Maker reference AP8126907

Garde-boue avant peint gris;

Garde-boue AV bleu;

1
P2R reference P2R reference
Maker reference Maker reference AP8126914

Garde-boue AV bleu;

Garde-boue AV bleu;

1
P2R reference P2R reference
Maker reference Maker reference AP8126915

Garde-boue AV bleu;

Garde-boue avant peint rouge

1
P2R reference P2R reference
Maker reference Maker reference AP8156080

Garde-boue avant peint rouge

Garde-boue avant peint bronze

1
P2R reference P2R reference
Maker reference Maker reference AP8156082

Garde-boue avant peint bronze

Garde-boue avant peint bronze

1
P2R reference P2R reference
Maker reference Maker reference AP8156083

Garde-boue avant peint bronze

Garde-boue avant vert

1
P2R reference P2R reference
Maker reference Maker reference AP8156084

Garde-boue avant vert

Garde-boue avant vert

1
P2R reference P2R reference
Maker reference Maker reference AP8156085

Garde-boue avant vert

AP8126797 - GARD-B AV RED FIRE;

1
P2R reference P2R reference 47894
Maker reference Maker reference AP8126797

AP8126797 - GARD-B AV RED FIRE;

More information

Quantity required : 1

Garde-boue AV noir;

1
P2R reference P2R reference
Maker reference Maker reference AP8126988

Garde-boue AV noir;

Garde-boue avant peint rouge

1
P2R reference P2R reference
Maker reference Maker reference AP8156081

Garde-boue avant peint rouge

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246-

2
P2R reference P2R reference 71933
Maker reference Maker reference AP8152246

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246-

More information

Quantity required : 7

AP8117129 - PANN.THERM.SPOILER;

3
P2R reference P2R reference 46226
Maker reference Maker reference AP8117129

AP8117129 - PANN.THERM.SPOILER;

More information

Quantity required : 1

SCREW - (5x9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339

4
P2R reference P2R reference 71973
Maker reference Maker reference AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339

More information

Quantity required : 4

AP8149666 - CARENE INF.GRISE;

5
P2R reference P2R reference 50725
Maker reference Maker reference AP8149666

AP8149666 - CARENE INF.GRISE;

More information

Quantity required : 1

AP8158773 - CARENE INF.NOIRE;

5
P2R reference P2R reference 51830
Maker reference Maker reference AP8158773

AP8158773 - CARENE INF.NOIRE;

More information

Quantity required : 1

Spoiler radiateur gris;

6
P2R reference P2R reference
Maker reference Maker reference AP8139367

Spoiler radiateur gris;

AP8148551 - FERMETURE INF. FRONT. CAR.;

7
P2R reference P2R reference 50363
Maker reference Maker reference AP8148551

AP8148551 - FERMETURE INF. FRONT. CAR.;

More information

Quantity required : 1

AP8152277 - VIS BRIDE

8
P2R reference P2R reference 71941
Maker reference Maker reference AP8152277

AP8152277 - VIS BRIDE

More information

Quantity required : 3

AP8124719 - CATADIOPTRE, AMBRE

9
P2R reference P2R reference 71569
Maker reference Maker reference AP8124719

AP8124719 - CATADIOPTRE, AMBRE

More information

Quantity required : 1

AP8150204 - ECROU AUTOFR. BAS

10
P2R reference P2R reference 71839
Maker reference Maker reference AP8150204

AP8150204 - ECROU AUTOFR. BAS

More information

Quantity required : 4

AP8150158 - RONDELLE

11
P2R reference P2R reference 71825
Maker reference Maker reference AP8150158

AP8150158 - RONDELLE

More information

Quantity required : 4
