Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

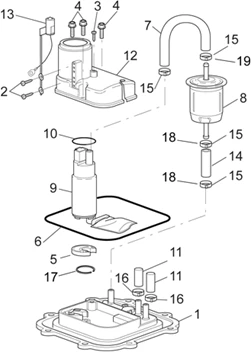

Chassis : 28.30 POMPE ESSENCE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_28.30.PNG)
1 |
AP8134750 - BRIDE POMPE ESSENCE; More informationQuantity required : 1 |
||||||
|
2 |
Vis taraud |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
2 |
AP8150421 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
4 |
AP8152273 - VIS BRIDE More informationQuantity required : 8 |
||||||
|
5 |
Caoutchouc pompe essence |
||||||
|
6 |
AP8144010 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/3/5/0/8/img/53508.jpg)
6 |
GASKET FOR FUEL GAUGE COVER "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO, RST FUTURA -AP8176032- More informationQuantity required : 1 |
||||||
|
7 |
Tuy.ess.pompe-filtre |
||||||
|
7 |
AP8144226 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
8 |
AP8102627 - FILTRE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/7/6/img/45276.jpg)
8 |
FUEL FILTER "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, FALCO, TUONO, FUTURA, CAPONORD -AP8102971- More informationQuantity required : 1 |
||||||
|
9 |
AP8106385 - POMPE ESSENCE More informationQuantity required : 1 |
||||||
|
10 |
AP8144011 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
11 |
AP8144298 - BOUCHON PURGE More informationQuantity required : 2 |
||||||
|
12 |
Support pompe essence; |
||||||
|
12 |
|
||||||
|
13 |
Détecteur niveau |
||||||
|
14 |
Tuyau essence |
||||||
|
14 |
AP8144476 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/8/img/71198.jpg)
15 |
AP8102765 - COLLIER CLIC, BLANC More informationQuantity required : 4 |
||||||
|
16 |
AP8102765 - COLLIER CLIC, BLANC More informationQuantity required : 2 |
||||||
|
17 |
|
||||||
|
18 |
890435 - COLLIER More informationQuantity required : 2 |
||||||
|
19 |
890435 - COLLIER More informationQuantity required : 1 |
