Vehicle Exploded View - MOTO-GUZZI SP 1000 SP II 1000 1983-1988
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

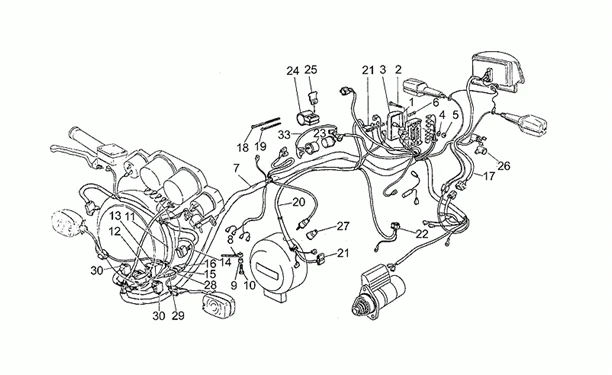

Chassis : 33.12 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/514/SP_II_1000_1983-1988_33.12.PNG)
1 |
|
||||||
|
2 |
|
||||||
|
3 |
|
||||||
|
4 |
GU95000205 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/0/img/132500.jpg)
5 |
GU92630105 - ECROU More informationQuantity required : 2 |
||||||
|
6 |
GU17742550 - FUSIBLE 16A More informationQuantity required : 6 |
||||||
|
7 |
FAISCEAU PRINCIPAL |
||||||
|
8 |
|
||||||
|
9 |
|
||||||
|
10 |
RESISTANCE |
||||||
|
11 |
|
||||||
|
12 |
GU14756251 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
13 |
CAPUCHON |
||||||
|
14 |
GU14747455 - FAISCEAU PRINCIPAL More informationQuantity required : 1 |
||||||
|
15 |
GU17755860 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
16 |
GU17755760 - CAPUCHON More informationQuantity required : 1 |
||||||
|
17 |
|
||||||
|
18 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 32 |
||||||
|
19 |
GU49609601 - COLLIER 2,4X92 More informationQuantity required : 3 |
||||||
|
20 |
FAISCEAU PRINCIPAL |
||||||
|
21 |
GU61712500 - CONNECTEUR 3 VIE More informationQuantity required : 2 |
||||||
|
22 |
GU61712600 - CONNECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/9/img/73449.jpg)
23 |
FLASHER UNIT (FOR 21W BULB) "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU17750520- More informationQuantity required : 2 |
||||||
|
24 |
GU17751200 - BLOC More informationQuantity required : 1 |
||||||
|
25 |
GU17750400 - PLAQUE More informationQuantity required : 1 |
||||||
|
26 |
GU12735100 - CAPUCHON More informationQuantity required : 1 |
||||||
|
27 |
GU12717600 - CAPUCHON More informationQuantity required : 1 |
||||||
|
28 |
GU17756160 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
29 |
GU17756060 - CAPUCHON More informationQuantity required : 1 |
||||||
|
30 |
BLOC |
||||||
|
33 |
Cablage |
