Vehicle Exploded View - MOTO-GUZZI SP 1000 SP II 1000 1983-1988
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

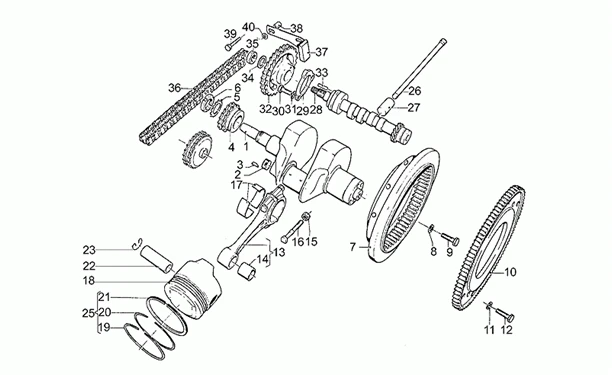

Moteur : 34.22 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/514/SP_II_1000_1983-1988_34.22.PNG)
1 |
VILEBREQUIN |
||||||
|
2 |
GU12065400 - BOUCHON More informationQuantity required : 1 |
||||||
|
3 |
GU91702355 - CLAVETTE More informationQuantity required : 1 |
||||||
|
4 |
GU14072001 - PIGNON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/1/img/132701.jpg)
5 |
GU95028025 - RONDELLE DE SERETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/3/1/img/132631.jpg)
6 |
RING NUT FOR TIMING GEAR "PIAGGIO GENUINE PART" MOTO-GUZZI COMMON TO 2 VALVES ENGINES -GU93601026- More informationQuantity required : 1 |
||||||
|
7 |
Volant |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
8 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
9 |
SCREW - (8X25) FOR CALIPER OR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -597150- More informationQuantity required : 6 |
||||||
|
10 |
GU17067900 - COURONNE More informationQuantity required : 1 |
||||||
|
11 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 8 |
||||||
|
12 |
GU98054420 - VIS M8X20 More informationQuantity required : 8 |
||||||
|
13 |
GU30061500 - BIELLE More informationQuantity required : 2 |
||||||
|
14 |
GU91112128 - BAGUE More informationQuantity required : 2 |
||||||
|
15 |
GU92731090 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
||||||
|
16 |
Vis |
||||||
|
17 |
Demi-coussinet |
||||||
|
17 |
GU30062001 - DEMI-COUSSINET 0,254 MM More informationQuantity required : 4 |
||||||
|
17 |
GU30062002 - DEMI-COUSSINET 0,508 MM More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/3/3/img/130533.jpg)
17 |
GU30062003 - DEMI-COUSSINET 0,762 MM More informationQuantity required : 4 |
||||||
|
18 |
PISTON |
||||||
|
19 |
GU14060760 - SEGMENT D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
20 |
GU18060950 - SEGMENT D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
21 |
GU14061060 - SEGMENT RACLEUR More informationQuantity required : 2 |
||||||
|
22 |
Axe |
||||||
|
23 |
GU27061385 - BAGUE DE BUTEE More informationQuantity required : 4 |
||||||
|
25 |
Série segments |
||||||
|
26 |
GU37045006 - CULBUTEUR TIGE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/1/2/img/129312.jpg)
27 |
VALVE TAPPET "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 SPORT, CALIFORNIA, GRISO, BREVA, 850 BREVA, NORGE, V10, V11, STRADA, LE-MANS, BELLAGIO -GU17045860 More informationQuantity required : 4 |
||||||
|
28 |
ARBRE A CAMES |
||||||
|
29 |
GU010540016 - BRIDE More informationQuantity required : 1 |
||||||
|
30 |
GU98054320 - VIS M6X20 More informationQuantity required : 3 |
||||||
|
31 |
GU95120065 - RONDELLE 6,5X11X2 More informationQuantity required : 3 |
||||||
|
32 |
Engrenage distribution |
||||||
|
33 |
GU14234600 - GOUPILLE More informationQuantity required : 1 |
||||||
|
34 |
GU14433400 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
35 |
GU92602518 - ECROU M18X1,5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/5/6/0/img/128560.jpg)
36 |
TIMING CHAIN "PIAGGIO GENUINE PART" MOTO-GUZZI COMMON TO ALL 2 VALVES ENGINES -GU05058030 More informationQuantity required : 1 |
||||||
|
37 |
GU30057810 - TENDEUR DE CHAINE More informationQuantity required : 1 |
||||||
|
38 |
|
||||||
|
39 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
40 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
