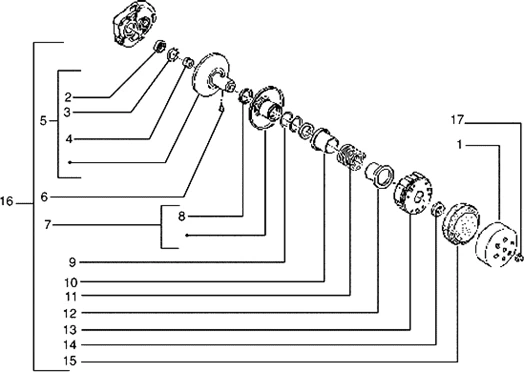

Vehicle Exploded View - GILERA STORM 50 1998-2005 GILERA

Moteur : T7 POULIE ENTRAINEE
Poulie entrainee
Search
CLUTCH DRUM "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC -289933-

1
P2R reference P2R reference 66235
Maker reference Maker reference 289933

CLUTCH DRUM "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC -289933-

More information

Quantity required : 1

VARIATOR BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke + 4 stroke -82655R

2
P2R reference P2R reference 68608
Maker reference Maker reference 82655R

VARIATOR BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE + 4 STROKE -82655R

More information

Quantity required : 1

006624 - CIRCLIPS

3
P2R reference P2R reference 63820
Maker reference Maker reference 0066245

006624 - CIRCLIPS

More information

Quantity required : 1

ROLLER BEARING FOR MAIN PULLEY "PIAGGIO GENUINE PART" FOR ALL SCOOTER 50 CC -289952 -

4
P2R reference P2R reference 66238
Maker reference Maker reference 289952

ROLLER BEARING FOR MAIN PULLEY "PIAGGIO GENUINE PART" FOR ALL SCOOTER 50 CC -289952 -

More information

Quantity required : 1

430190 - MOYEU EMBRAYAGE

5
P2R reference P2R reference 78531
Maker reference Maker reference 430190

430190 - MOYEU EMBRAYAGE

More information

Quantity required : 1

DRIVEN PULLEY PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -482766

6
P2R reference P2R reference 66622
Maker reference Maker reference 482766

DRIVEN PULLEY PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -482766

More information

Quantity required : 3

430191 - SEMI POULIE

7
P2R reference P2R reference 78532
Maker reference Maker reference 430191

430191 - SEMI POULIE

More information

Quantity required : 1

289950 - BAGUE

8
P2R reference P2R reference 66237
Maker reference Maker reference 289950

289950 - BAGUE

More information

Quantity required : 1

289840 - JOINT

9
P2R reference P2R reference 66231
Maker reference Maker reference 289840

289840 - JOINT

More information

Quantity required : 1

483443 - CUVETTE EX 436879

10
P2R reference P2R reference 66632
Maker reference Maker reference 483443

483443 - CUVETTE EX 436879

More information

Quantity required : 1

VARIATOR THRUST SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC -478028-

11
P2R reference P2R reference 66542
Maker reference Maker reference 478028

VARIATOR THRUST SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC -478028-

More information

Quantity required : 1

487935 - RONDELLE D'AR

12
P2R reference P2R reference 66764
Maker reference Maker reference 487935

487935 - RONDELLE D'AR

More information

Quantity required : 1

CM1002015 - GROUPE EMBRAYAGE

13
P2R reference P2R reference 73028
Maker reference Maker reference CM1002015

CM1002015 - GROUPE EMBRAYAGE

More information

Quantity required : 1

NUT - FOR CLUTCH "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -289955-

14
P2R reference P2R reference 66239
Maker reference Maker reference 289955

NUT - FOR CLUTCH "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -289955-

More information

Quantity required : 1

POULIE ENTRAINEE

16
P2R reference P2R reference
Maker reference Maker reference CM100402

POULIE ENTRAINEE

NUT - FOR VARIATOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289519

17
P2R reference P2R reference 66225
Maker reference Maker reference 289519

NUT - FOR VARIATOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289519

More information

Quantity required : 1
