Vehicle Exploded View - GILERA STORM 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

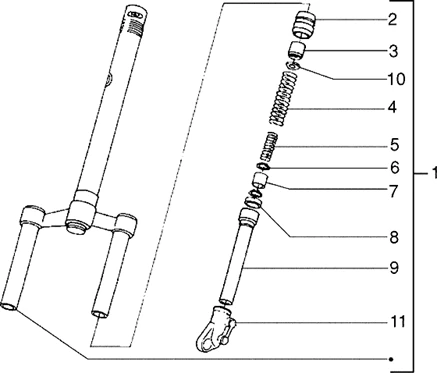

Suspensions-roues : T27 FOURCHE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/652/Storm_1998-2005_T27.PNG)
1 |
561230 - FOURCHE CPLTE More informationQuantity required : 1 |
||||||
|
2 |
MANCHON SUP |
||||||
|
3 |
463979 - TAMPON More informationQuantity required : 2 |
||||||
|
4 |
272443 - RESSORT More informationQuantity required : 2 |
||||||
|
5 |
RESSORT |
||||||
|
6 |
272706 - BAGUE More informationQuantity required : 4 |
||||||
|
7 |
272707 - BAGUE More informationQuantity required : 2 |
||||||
|
8 |
COUPELLE |
||||||
|
9 |
TUBE INF |
||||||
|
10 |
463962 - COUPELLE More informationQuantity required : 2 |
||||||
|
11 |
Patte susp. |
||||||
|
11 |
Patte susp. |
||||||
|
12 |
JOINT |
