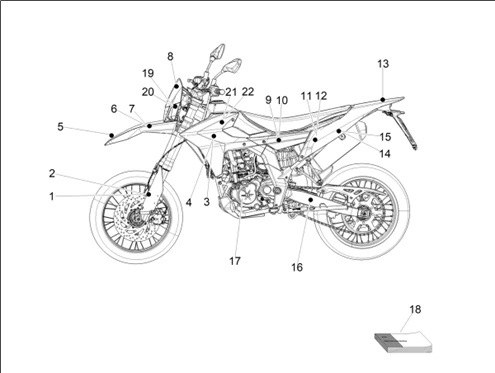

Carrosserie : 02.19 DÉCALCO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1313/SX_125_2025_(EMEA)_02.19.png)
1 |
2R000398 - COMMUTATEUR A CLEF More informationQuantity required : 1 |
||||||
|
1 |
2H006662 - STICKER CACHE-TIGE D More informationQuantity required : 1 |
||||||
|
2 |
2H006784 - STICKER CACHE-TIGE D More informationQuantity required : 1 |
||||||
|
2 |
2H006663 - STICKER CACHE-TIGE G More informationQuantity required : 1 |
||||||
|
3 |
2H006785 - STICKER CACHE-TIGE G More informationQuantity required : 1 |
||||||
|
3 |
2H006653 - STICKER FLANC DE CARENAGE CENTRAL D. More informationQuantity required : 1 |
||||||
|
4 |
2H006777 - STICKER FLANC DE CARENAGE CENTRAL D. More informationQuantity required : 1 |
||||||
|
4 |
2H006654 - STICKER FLANC CENTRAL G. More informationQuantity required : 1 |
||||||
|
5 |
2H006778 - STICKER FLANC CENTRAL G. More informationQuantity required : 1 |
||||||
|
6 |
2H006649 - DECALCO GARDE-BOUE AV More informationQuantity required : 1 |
||||||
|
6 |
2H006650 - STICKER GARDE-BOUE AVANT DROIT More informationQuantity required : 1 |
||||||
|
7 |
2H006774 - STICKER GARDE-BOUE AVANT DROIT More informationQuantity required : 1 |
||||||
|
7 |
2H006651 - STICKER GARDE-BOUE AVANT GAUCHE More informationQuantity required : 1 |
||||||
|
8 |
2H006775 - STICKER GARDE-BOUE AVANT GAUCHE More informationQuantity required : 1 |
||||||
|
8 |
2H006652 - STICKER PORTE-NUMERO More informationQuantity required : 1 |
||||||
|
9 |
2H006776 - STICKER PORTE-NUMERO More informationQuantity required : 1 |
||||||
|
9 |
2H006655 - STICKER CARENAGE ARRIERE DROIT More informationQuantity required : 1 |
||||||
|
10 |
2H006779 - STICKER CARENAGE ARRIERE DROIT More informationQuantity required : 1 |
||||||
|
10 |
2H006657 - STICKER CARENAGE ARRIERE GAUCHE More informationQuantity required : 1 |
||||||
|
11 |
2H006781 - STICKER CARENAGE ARRIERE GAUCHE More informationQuantity required : 1 |
||||||
|
11 |
2H006656 - STICKER CARENAGE ARRIERE DROIT More informationQuantity required : 1 |
||||||
|
12 |
2H006780 - STICKER CARENAGE ARRIERE DROIT More informationQuantity required : 1 |
||||||
|
12 |
2H006658 - LEFT "RIL" REAR SIDE COVER DECAL More informationQuantity required : 1 |
||||||
|
13 |
2H006782 - LEFT "RIL" REAR SIDE COVER DECAL More informationQuantity required : 1 |
||||||
|
13 |
2H006659 - STICKER BAVETTE ARRIERE More informationQuantity required : 1 |
||||||
|
14 |
2H006664 - STICKER BAVETTE ARRIERE DROITE More informationQuantity required : 1 |
||||||
|
15 |
2H006665 - STICKER BAVETTE ARRIERE GAUCHE More informationQuantity required : 1 |
||||||
|
16 |
2B005030 - DECALCO More informationQuantity required : 1 |
||||||
|
17 |
2R000539 - DECALCO More informationQuantity required : 1 |
||||||
|
18 |
|
||||||
|
18 |
|
||||||
|
19 |
2R000539 - DECALCO More informationQuantity required : 1 |
||||||
|
19 |
2H007273 - TABLEAU POUR LE NOMBRE DROITE More informationQuantity required : 1 |
||||||
|
20 |
2H007277 - TABLEAU POUR LE NOMBRE DROITE More informationQuantity required : 1 |
||||||
|
20 |
2H007274 - TABLEAU POUR LE NOMBRE GAUCHE More informationQuantity required : 1 |
||||||
|
21 |
2H007278 - TABLEAU POUR LE NOMBRE GAUCHE More informationQuantity required : 1 |
||||||
|
21 |
2H007275 - RIGHT SIDE COVER "ILIA" INTERNAL DECAL More informationQuantity required : 1 |
||||||
|
22 |
2H007279 - RIGHT SIDE COVER "ILIA" INTERNAL DECAL More informationQuantity required : 1 |
||||||
|
22 |
2H007276 - LEFT SIDE COVER "APR" INTERNAL COVER More informationQuantity required : 1 |
