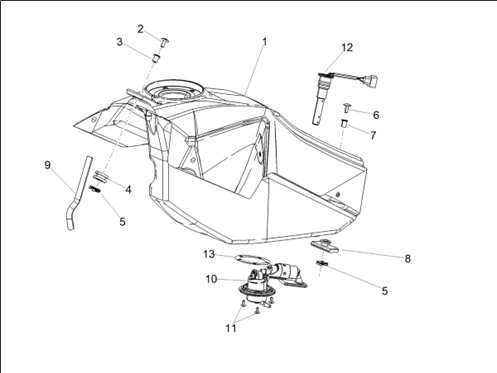

Réservoir : 09.01 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1313/SX_125_2025_(EMEA)_09.01.png)
1 |
2B007270 - FUEL TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/4/4/img/64544.jpg)
2 |
00H01503701 - VIS M6X25 More informationQuantity required : 1 |
||||||
|
3 |
866108 - CASQ.DLNT.FIJ.DPSTO.GASOL.DRD125 09 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/8/img/64248.jpg)
4 |
00H00403581 - PUFFER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
|
6 |
2R000346 - VIS More informationQuantity required : 1 |
||||||
|
7 |
2B007961 - T BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/3/img/71403.jpg)
8 |
AP8120557 - CAOUTCHOUC RESERV. More informationQuantity required : 1 |
||||||
|
9 |
2B004711 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
10 |
2B007538 - POMPE ESSENCE More informationQuantity required : 1 |
||||||
|
11 |
2R000403 - VIS M5×16 More informationQuantity required : 2 |
||||||
|
12 |
2R000350 - INDICATEUR RESERVE HUILE More informationQuantity required : 1 |
||||||
|
13 |
2R000350 - INDICATEUR RESERVE HUILE More informationQuantity required : 1 |
