Vehicle Exploded View - APRILIA SX 50 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

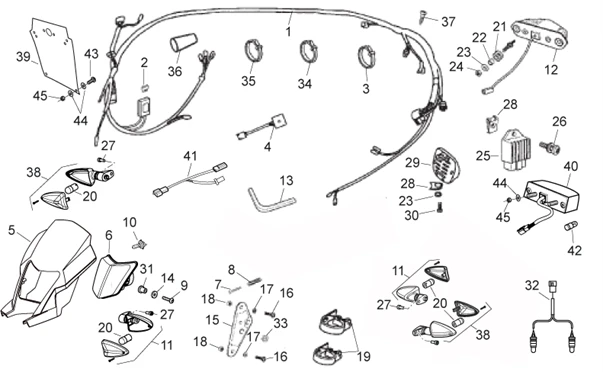

Chassis : 28.07 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/678/SX_50_2014_28.07.PNG)
1 |
867477 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
|
2 |
00H01001911 - FUSIBLE More informationQuantity required : 1 |
||||||
|
3 |
RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/9/7/img/64997.jpg)
4 |
DASHBOARD TIMER "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H05700481 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/1/7/img/66317.jpg)
5 |
FRONT HEADLIGHT COVER "PIAGGIO GENUINE PARTS" APRILIA 50 SX, RX 2014>2017 BLACK -2B000016000XN4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/5/1/2/img/96512.jpg)
6 |
HEAD LIGHT - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2018>/APRILIA 50-125 RX, SX, 450-550 RXV, RSV -855038 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/2/img/63692.jpg)
7 |
00012045000 - VIS 4M70X50 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/9/1/img/64691.jpg)
8 |
HEADLIGHT ADJUSTMENT SPRING "PIAGGIO GENUINE PART" APRILIA 50 SX, RX -00H02304501- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
9 |
AP8152137 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
10 |
LIGHT BULB FOR HEADLAMP 12V-35/35W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -219528 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/2/img/65962.jpg)
10 |
231215 - AMPOULE 12V-35/35W More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/6/img/71626.jpg)
11 |
FLASHER-FRONT-RIGHT/REAR-LEFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2018>/APRILIA 50 SX, RX 2006> -AP8127784- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/6/img/64386.jpg)
12 |
TAILLIGHT- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H01009321 More informationQuantity required : 1 |
||||||
|
13 |
00H05700101 - BUTEE PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
14 |
AP8152181 - RONDELLE FER PLATE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/4/1/img/64541.jpg)
15 |
FORK HEAD SUPPORT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01502741- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/3/img/63693.jpg)
16 |
00012051200 - VIS T.RONDE CROIX 5M80X12 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
17 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 4 |
||||||
|
18 |
00026005000 - ECROU HEXAG.A/BRIDE 5M80 D6923 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/2/1/img/64921.jpg)
19 |
FORK HEAD HOSE CLAMP "PIAGGIO GENUINE PART" APRILIA 50 SX, RX -00H04603841 More informationQuantity required : 4 |
||||||
|
20 |
AP8127489 - LAMPE RY10W 12V More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/3/img/63673.jpg)
21 |
SILENT-BLOC FOR RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2018/APRILIA 50 RS 2006>2018, SX, RX 2006>2018 - 00008915020- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/2/img/63882.jpg)
22 |
SPACER-RING NUT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00D01500471- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
23 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
24 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/8/8/img/70888.jpg)
25 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2015/APRILIA 50 RS 2006>2016, RX, SX 2006>2016 (RED VERSION) -898891- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/5/img/63895.jpg)
26 |
00D05910081 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
27 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
28 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/2/img/64382.jpg)
29 |
HORN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01005311 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/6/img/63696.jpg)
30 |
00012061200 - VIS A TETE RONDE A FENTES C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/7/6/img/46976.jpg)
31 |
AP8121991 - DOUILLE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/2/img/63642.jpg)
32 |
SPRING FOR BULB HOLDER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00003710120 More informationQuantity required : 1 |
||||||
|
32 |
856610 - CABLAGE FEU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/9/9/img/64999.jpg)
33 |
00H05701061 - CAOUTCHOUC PASSE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
34 |
00F00900531 - COLLIER More informationQuantity required : 1 |
||||||
|
35 |
RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/8/4/img/64684.jpg)
36 |
PROTECTION FOR ELECTRIC BUNDLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00H02300961 More informationQuantity required : 1 |
||||||
|
37 |
00011061300 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/5/img/71625.jpg)
38 |
FLASHER-FRONT-RIGHT/REAR-LEFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2018>/APRILIA 50 SX, RX 2006> -AP8127783 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/5/1/img/69851.jpg)
39 |
NUMBER PLATE SUPPORT "PIAGGIO GENUINE PART" GILERA 50 RCR/APRILIA 50 SX, RX -861313 More informationQuantity required : 1 |
||||||
|
40 |
00H05700471 - FEU REGISTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/5/2/img/69852.jpg)
41 |
861315 - INSTAL.INTERM.FARO MATRIC.SD DRD PRO SZA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/7/9/img/64379.jpg)
42 |
00H01003131 - TUBE PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/0/img/71850.jpg)
43 |
AP8150280 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/4/img/71844.jpg)
44 |
AP8150248 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
45 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 6 |
