Vehicle Exploded View - APRILIA SX 50 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

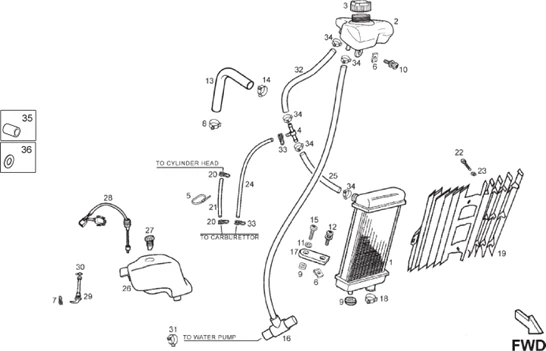

Chassis : 28.13 RADIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/678/SX_50_2014_28.13.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/3/3/img/69933.jpg)
1 |
COOLING RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>/APRILIA 50 RX, SX 2011> -2B0024585- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/7/4/img/64874.jpg)
2 |
COOLANT TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H03810501- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/5/8/img/64858.jpg)
3 |
COOLANT TANK CAP "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 RS, SX, RX -00H03802472- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/6/4/img/69964.jpg)
4 |
"Y"UNION-RADIATOR TO COOLANT TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>/APRILIA 50 SX, RX 2011>/LAVERDA 50 SM 2019> -862541 More informationQuantity required : 1 |
||||||
5 |
RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
7 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/8/img/71158.jpg)
8 |
AP8101722 - COLLIER CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/3/img/63673.jpg)
9 |
SILENT-BLOC FOR RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2018/APRILIA 50 RS 2006>2018, SX, RX 2006>2018 - 00008915020- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
10 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/3/img/63883.jpg)
11 |
00D01500552 - CUVETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
12 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/5/7/img/69857.jpg)
13 |
COOLANT HOSE (FROM COOLANT TANK TO CYLINDER HEAD) "PIAGGIO GENUINE PART" GILERA 50 SMT 2011>, RCR/APRILIA 50 SX, RX 2006> -86138R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/2/3/img/45123.jpg)
14 |
AP8101927 - COLLIER CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
15 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/7/6/img/151776.jpg)
16 |
COOLANT HOSE - FROM RADIATOR TO PUMP "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2011>/APRILIA 50 SX, RX 2011> ("T" SHAPED WITH RIGID HOSE) -2B004389- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/2/4/img/64024.jpg)
17 |
RADIATOR SUPPORT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00G02200692- More informationQuantity required : 1 |
||||||
|
18 |
00H03801751 - ABRAZ.NORMA COBRA 22/8 W4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/0/9/4/img/151094.jpg)
19 |
RADIATOR GRID "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -2B005365 More informationQuantity required : 1 |
||||||
|
20 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/5/3/img/64853.jpg)
21 |
COOLANT HOSE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03801961 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/7/img/63687.jpg)
22 |
SCREW - FOR RADIATOR GRILLE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00011141300- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/4/img/71844.jpg)
23 |
AP8150248 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/6/6/img/69966.jpg)
24 |
862543 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/6/7/img/69967.jpg)
25 |
COOLANT HOSE - FROM RADIATOR TO 3 WAY CONNECTION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -862544 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/2/6/img/64826.jpg)
26 |
OIL TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00H03704081- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/1/9/img/63919.jpg)
27 |
OIL TANK CAP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00F03710241 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/3/8/img/70338.jpg)
28 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR/APRILIA 50 SX, RX 2006> -867531 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/1/6/img/71216.jpg)
29 |
FUEL TANK UNION "PIAGGIO GENUINE PART" APRILIA 125 SPORT-CITY, MOJITO, 50 SCARABEO, SX, RX, MOJITO -AP8104071- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
30 |
FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888- More informationQuantity required : 1 |
||||||
|
31 |
AP8101927 - COLLIER CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/6/5/img/69965.jpg)
32 |
862542 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/1/img/64241.jpg)
33 |
00H00400501 - CRAMPON ELASTIQUE TUBE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/0/8/img/64108.jpg)
34 |
00G03801701 - BRIDE TUBE RESPIRATION R?SERVO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/2/img/71482.jpg)
35 |
AP8121697 - RESSORT A GODET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
36 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001- More informationQuantity required : 1 |
