Vehicle Exploded View - APRILIA TUONO 125 E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

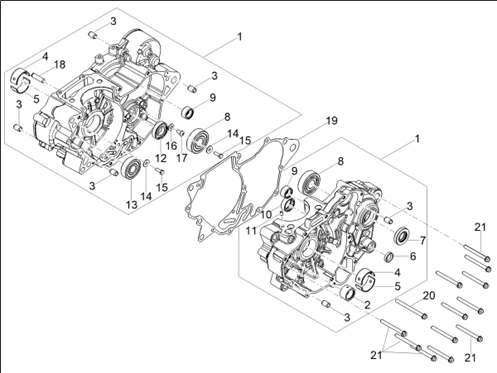

Moteur : 03.03 CARTERS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1301/Tuono_125_E5_ABS_2025_(EMEA)_03.03.png)
1 |
1A02569001 - CARTER COMPLET 1E CAT. More informationQuantity required : 1 |
||||||
|
1 |
1A02569002 - CARTER COMPLET 2E CAT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/8/img/65778.jpg)
2 |
ROLLER BEARING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177442- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
3 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/4/8/img/109048.jpg)
4 |
8580170B - SEMICUSCIN. More informationQuantity required : 2 |
||||||
|
4 |
8580170R - SEMICUSCIN.DI More informationQuantity required : 2 |
||||||
|
5 |
8580180R - DEMI ROULEMENT More informationQuantity required : 2 |
||||||
|
5 |
8580180B - DEMI ROULEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
6 |
GASKET RING- CLUTCH CONTRAL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847075- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/2/img/69412.jpg)
7 |
GEARBOX OUTPUT SPROCKET O'RING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS -847019 More informationQuantity required : 1 |
||||||
|
8 |
1A028128 - ROULEMENT A BILLES More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/0/0/img/65800.jpg)
9 |
182015 - CAGE A ROUL. More informationQuantity required : 2 |
||||||
|
10 |
898628 - CAGE A ROULEAUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/9/img/66669.jpg)
11 |
484993 - PIVOT DE CENTR. More informationQuantity required : 1 |
||||||
|
12 |
898627 - ROULEMENT A BILLES More informationQuantity required : 1 |
||||||
|
13 |
1A025872 - ROULEMENT RADIAL More informationQuantity required : 1 |
||||||
|
14 |
224664 - RONDELLE More informationQuantity required : 2 |
||||||
|
15 |
031057 - BOULON S03105700 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/3/img/63803.jpg)
16 |
006125 - RONDELLE S00612500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/5/img/66135.jpg)
17 |
274369 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/0/img/69450.jpg)
18 |
OIL PUMP AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX, TUONO, RS -847076- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/6/1/img/70461.jpg)
19 |
GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO 4 STROKE 2011> -873086- More informationQuantity required : 1 |
||||||
|
20 |
828922 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
21 |
B016425 - VIS BRIDE More informationQuantity required : 12 |
