Vehicle Exploded View - APRILIA TUONO 125 E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

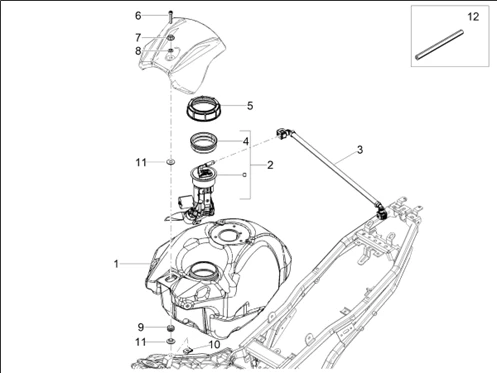

Réservoir : 09.01 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1301/Tuono_125_E5_ABS_2025_(EMEA)_09.01.png)
1 |
2B009534 - RESERVOIR D'ESSENCE ECRU More informationQuantity required : 1 |
||||||
|
2 |
1R000547 - FUEL PUMP WITH GASKET More informationQuantity required : 1 |
||||||
|
3 |
2B008232 - COMPLETE FUEL PIPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
4 |
FUEL GAUGE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -656003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.jpg)
5 |
576546 - ECROU POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
6 |
SCREW - (6X35) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150285- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/2/img/71902.jpg)
7 |
AP8150536 - ROSETTA SPECIALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
8 |
More informationQuantity required : 1 |
||||||
|
9 |
AP8144713 - GOMMINO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/0/3/6/img/43036.jpg)
11 |
898715 - DOUILLE EN "T" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/3/1/img/109031.jpg)
12 |
2B000909 - JOINT More informationQuantity required : 1 |
