Vehicle Exploded View - MOTO-GUZZI V11 1100 V 11 Sport-Mandello 1100 1999-2001 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

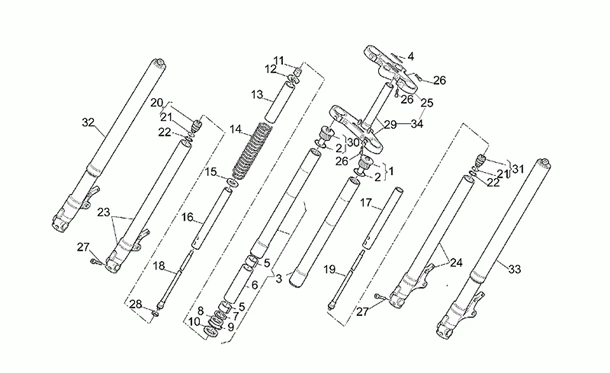

Chassis : 33.09 FOURCHE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/913/V_11_Sport-Mandello_1100_1999-2001_(APAC_EMEA)_33.09.png)
1 |
GU01504530 - BOUCHON GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/1/3/img/71513.jpg)
2 |
AP8123346 - JOINT TORIQUE; More informationQuantity required : 2 |
||||||
|
3 |
GU01530565 - FODERO More informationQuantity required : 2 |
||||||
|
3 |
GU01530584 - FODERO More informationQuantity required : 2 |
||||||
|
4 |
GU01517700 - "DECALCO ""AQUILIA""" More informationQuantity required : 1 |
||||||
|
5 |
AP8123689 - DOUILLE DE COULISSEMENT; More informationQuantity required : 4 |
||||||
|
6 |
GU01530567 - DISTANZIALE More informationQuantity required : 2 |
||||||
|
7 |
599504 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/5/img/67385.jpg)
8 |
FORK OIL SEAL GASKET- MARZOCCHI (D40) "PIAGGIO GENUINE PART" 500 X9/APRILIA 50-125-250 RS, 500 ATLANTIC, 650 PEGASO/GILERA 500 NEXUS/MOTO-GUZZI 750 BREVA, NEVADA, V7 -599501- More informationQuantity required : 2 |
||||||
|
9 |
AP8123199 - BAGUE DE BUTEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/6/img/67386.jpg)
10 |
FORK DUST COVER - "PIAGGIO GENUINE PART" APRILIA 50-125-250 RS/MOTO-GUZZI V7, BREVA NEVADA -599502- More informationQuantity required : 2 |
||||||
|
11 |
AP8163351 - DADO M12X1,25 CH.19 More informationQuantity required : 2 |
||||||
|
12 |
GU03530508 - SCODELLINO More informationQuantity required : 2 |
||||||
|
13 |
GU01530585 - TUYAU More informationQuantity required : 2 |
||||||
|
13 |
GU01530574 - TUYAU More informationQuantity required : 2 |
||||||
|
14 |
GU01526630 - MOLLA More informationQuantity required : 2 |
||||||
|
15 |
GU01530575 - SCODELLINO More informationQuantity required : 2 |
||||||
|
16 |
GU01530576 - TUBO DX More informationQuantity required : 1 |
||||||
|
17 |
GU01530577 - TUBO SX More informationQuantity required : 1 |
||||||
|
18 |
GU01526430 - TIGE DE POMPAGE D More informationQuantity required : 1 |
||||||
|
19 |
GU01526431 - TIGE DE POMPAGE G More informationQuantity required : 1 |
||||||
|
20 |
GU01526330 - TAPPO CPL. More informationQuantity required : 1 |
||||||
|
21 |
GU01530578 - O-RING More informationQuantity required : 2 |
||||||
|
22 |
GU03530522 - ANELLO OR More informationQuantity required : 2 |
||||||
|
23 |
GU01522530 - FODERO DX CPL. More informationQuantity required : 1 |
||||||
|
23 |
GU01522540 - FODERO DX CPL. More informationQuantity required : 1 |
||||||
|
24 |
GU01522630 - FOURREAU G More informationQuantity required : 1 |
||||||
|
24 |
GU01522640 - FODERO SX CPL. More informationQuantity required : 1 |
||||||
|
24 |
GU01522631 - FOURREAU G More informationQuantity required : 1 |
||||||
|
25 |
GU01493131 - PLAQUE SUP.FOURCHE More informationQuantity required : 1 |
||||||
|
25 |
GU01493130 - PLAQUE SUP.FOURCHE More informationQuantity required : 1 |
||||||
|
25 |
GU01493140 - TETE FOURCHE NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/1/img/133141.jpg)
26 |
GU98622430 - VIS M8X30 More informationQuantity required : 7 |
||||||
|
27 |
GU98622325 - VIS M6X25 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/6/5/img/72065.jpg)
28 |
AP8163353 - SEGMENTO PISTONE D.26 More informationQuantity required : 1 |
||||||
|
29 |
GU01494040 - PLAQUE INF.NOIRE More informationQuantity required : 1 |
||||||
|
29 |
GU01494030 - PLAQUE INF. More informationQuantity required : 1 |
||||||
|
29 |
GU01494031 - PLAQUE INF. More informationQuantity required : 1 |
||||||
|
30 |
GU01504531 - BOUCHON D. More informationQuantity required : 1 |
||||||
|
31 |
GU01526331 - TAPPO SX More informationQuantity required : 1 |
||||||
|
32 |
GU01490640 - FOURREAU D More informationQuantity required : 1 |
||||||
|
32 |
GU01490630 - FOURREAU D More informationQuantity required : 1 |
||||||
|
33 |
GU01490740 - FOURREAU G More informationQuantity required : 1 |
||||||
|
33 |
GU01490730 - FOURREAU G More informationQuantity required : 1 |
||||||
|
33 |
GU01490731 - FOURREAU G More informationQuantity required : 1 |
||||||
|
34 |
GU01493131 - PLAQUE SUP.FOURCHE More informationQuantity required : 1 |
