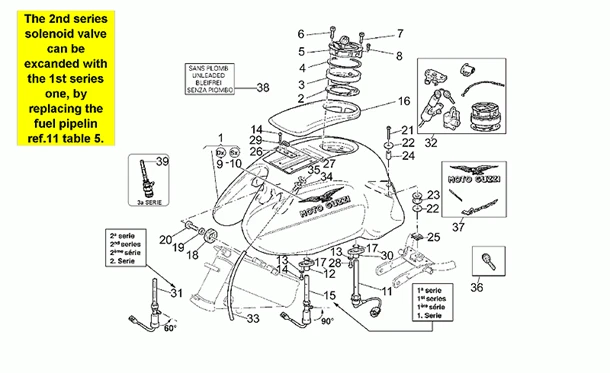

Chassis : 33.21 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/913/V_11_Sport-Mandello_1100_1999-2001_(APAC_EMEA)_33.21.png)
1 |
GU01100240 - SERBATOIO BENZ.ROSSO More informationQuantity required : 1 |
||||||
|
1 |
GU01100232 - SERBATOIO BENZ.VER More informationQuantity required : 1 |
||||||
|
1 |
GU01100234 - SERBATOIO BENZ.NERO More informationQuantity required : 1 |
||||||
|
1 |
GU01100230 - SERBATOIO BENZ.GREZZO More informationQuantity required : 1 |
||||||
|
1 |
GU01100233 - SERBATOIO BENZ.ARGENTO More informationQuantity required : 1 |
||||||
|
2 |
GU02102400 - JOINT More informationQuantity required : 1 |
||||||
|
3 |
GU02102300 - FLANGIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/0/img/71420.jpg)
4 |
FUEL CAP SEAL GASKET "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT -AP8120893 More informationQuantity required : 1 |
||||||
|
5 |
GU01103960 - TAPPO SERBATOIO More informationQuantity required : 1 |
||||||
|
6 |
GU98620230 - VIS M5X30 More informationQuantity required : 3 |
||||||
|
7 |
GU98622210 - VIS M5X10 More informationQuantity required : 3 |
||||||
|
8 |
GU98622216 - VIS More informationQuantity required : 1 |
||||||
|
9 |
GU01917800 - DECALCO DX "MOTO GUZZI" More informationQuantity required : 1 |
||||||
|
9 |
GU01917840 - DECALCO DX "MOTO GUZZI" More informationQuantity required : 1 |
||||||
|
10 |
GU01917900 - "DECALCO G.""MOTO GUZZI""" More informationQuantity required : 1 |
||||||
|
10 |
GU01917940 - DECALCO SX "MOTO GUZZI" More informationQuantity required : 1 |
||||||
|
11 |
GU01103030 - SONDA LIVELLO BENZ. More informationQuantity required : 1 |
||||||
|
12 |
GU01101830 - FLANGIA More informationQuantity required : 1 |
||||||
|
13 |
GU29217960 - RONDELLE 5,9X3X0,8 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/6/1/img/132961.jpg)
14 |
GU98230510 - VIS M5X10 More informationQuantity required : 4 |
||||||
|
15 |
GU01105330 - ROBINET ESSENCE More informationQuantity required : 1 |
||||||
|
16 |
GU01104030 - FERMETURE BOUCHON More informationQuantity required : 1 |
||||||
|
17 |
GU90706116 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
18 |
GU66103415 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
19 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
20 |
GU98682420 - VIS TCEI M8X20 More informationQuantity required : 2 |
||||||
|
21 |
GU98052445 - VIS More informationQuantity required : 1 |
||||||
|
22 |
GU95100239 - RONDELLE More informationQuantity required : 2 |
||||||
|
23 |
GU02107100 - GOMMINO More informationQuantity required : 1 |
||||||
|
24 |
GU91180831 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
25 |
GU01576530 - ECROU COLLIER M8X1,25 More informationQuantity required : 1 |
||||||
|
26 |
GU02103600 - PIASTRINA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/2/8/4/img/102284.jpg)
27 |
GU02573900 - GOMMINO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/5/img/73565.jpg)
28 |
GU98370515 - VIS More informationQuantity required : 4 |
||||||
|
29 |
GU29217960 - RONDELLE 5,9X3X0,8 More informationQuantity required : 4 |
||||||
|
30 |
GU02101800 - BRIDE More informationQuantity required : 1 |
||||||
|
31 |
GU03105300 - SOUPAPE CARBURANT More informationQuantity required : 1 |
||||||
|
32 |
GU01736830 - KIT SERRATURE More informationQuantity required : 1 |
||||||
|
33 |
GU00823944050 - TUBO GOMMA 5X9 SAE30R7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/8/0/2/img/37802.jpg)
34 |
2B001203 - CAOUTCHOUC AVEC INSERT More informationQuantity required : 2 |
||||||
|
35 |
GU30104630 - JOINT More informationQuantity required : 2 |
||||||
|
36 |
GU30735500 - CLE PAS CANTEE BRUT More informationQuantity required : 1 |
||||||
|
37 |
GU01923340 - DECALCO SERIE More informationQuantity required : 1 |
||||||
|
37 |
GU01923332 - DECALCO SERIE More informationQuantity required : 1 |
||||||
|
37 |
GU01923330 - DECALCO SERIE More informationQuantity required : 1 |
||||||
|
38 |
GU29995735 - DECALCOMANIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/4/2/3/img/101423.jpg)
39 |
FUEL TAP "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 DAYTONA, QUOTA, 1100 SPORT, V11, CALIFORNIA -GU01105460- More informationQuantity required : 1 |
