Vehicle Exploded View - MOTO-GUZZI V7 750 Stone 850 E5 ABS SPECIAL EDITION 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

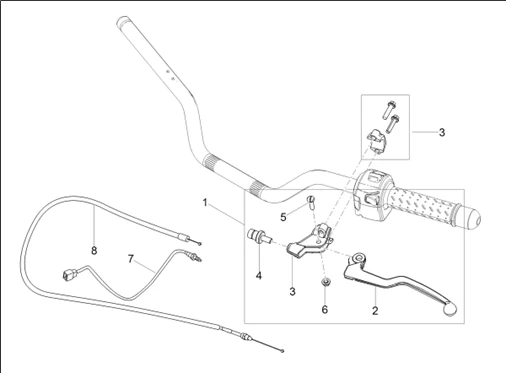

Guidon - commandes : 07.03 COMMANDE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1187/V7_Stone_850_E5_ABS_SPECIAL_EDITION_2023_(EMEA)_07.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/8/1/6/img/140816.jpg)
1 |
2B002391 - LEVIER EMBRAYAGE COMPLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/8/1/5/img/140815.jpg)
2 |
CLUTCH LEVER- "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, 850 V9 -2B002390 More informationQuantity required : 1 |
||||||
3 |
893937 - BEQUILLE More informationQuantity required : 1 |
||||||
|
4 |
AP8118348 - REGLAGE LEVIER EMBRAYAGE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/4/img/72194.jpg)
5 |
SCREW - FOR CLUTCH LEVER ADJUSTING "PIAGGIO GENUINE PART" APRILIA 50-125 RS/MOTO-GUZZI 750 BREVA, NEVADA, V7, V9 -AP8213028 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/0/img/71360.jpg)
6 |
AP8118490 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/0/7/0/img/141070.jpg)
7 |
2D0002885 - INTERRUPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/5/3/img/140953.jpg)
8 |
2B002961 - CABLE EMBRAYAGE More informationQuantity required : 1 |
