Vehicle Exploded View - MOTO-GUZZI V7 750 Stone 850 E5 ABS SPECIAL EDITION 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

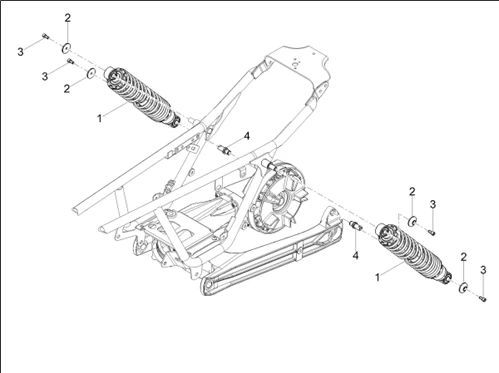

Suspensions : 04.08 AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1187/V7_Stone_850_E5_ABS_SPECIAL_EDITION_2023_(EMEA)_04.08.png)
Search
1 |
2B010600 - RED REAR SHOCK ABSORBER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/0/3/2/img/101032.jpg)
2 |
B063174 - BUSSOLA ROTAZIONE FANALE More informationQuantity required : 4 |
||||||
|
3 |
884031 - VITE TCEI M6X14 PREIMPREGNATA More informationQuantity required : 4 |
||||||
|
4 |
2B003111 - PIVOT More informationQuantity required : 2 |
All the exploded views of this vehicle
