Vehicle Exploded View - VESPA VESPA 50 4T 1998-2005 VESPA

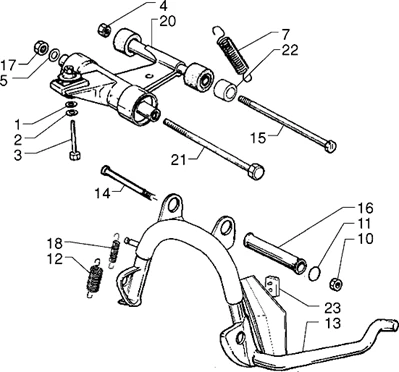

Châssis : T20 BEQUILLE - BRAS OSCILLANT
Bequille - Bras oscillant
Search
122781 - RONDELLE

1
P2R reference P2R reference 65715
Maker reference Maker reference 122781

122781 - RONDELLE

More information

Quantity required : 1

016410 - ANNEAU

2
P2R reference P2R reference 65419
Maker reference Maker reference 0164105

016410 - ANNEAU

More information

Quantity required : 1

560045 - VIS

3
P2R reference P2R reference 66991
Maker reference Maker reference 560045

560045 - VIS

More information

Quantity required : 1

NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440

4
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440

More information

Quantity required : 1

709037 - RONDELLE

5
P2R reference P2R reference 68489
Maker reference Maker reference 709037

709037 - RONDELLE

More information

Quantity required : 1

SWING ARM SPRING "PIAGGIO GENUINE PART" 50 VESPA LX, VESPA-S, SPRINT, PRIMAVERA 4 stroke -563321

7
P2R reference P2R reference 79904
Maker reference Maker reference 563321

SWING ARM SPRING "PIAGGIO GENUINE PART" 50 VESPA LX, VESPA-S, SPRINT, PRIMAVERA 4 STROKE -563321

More information

Quantity required : 1

NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440

10
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440

More information

Quantity required : 1

STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -273754

11
P2R reference P2R reference 66127
Maker reference Maker reference 273754

STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -273754

More information

Quantity required : 2

SPRING - FOR STAND "PIAGGIO GENUINE PART" 50 4 stroke LIBERTY, ZIP, VESPALX -582504

12
P2R reference P2R reference 81767
Maker reference Maker reference 582504

SPRING - FOR STAND "PIAGGIO GENUINE PART" 50 4 STROKE LIBERTY, ZIP, VESPALX -582504

More information

Quantity required : 1

CENTER STAND "PIAGGIO GENUINE PART" 50 VESPA LX 4stroke 2005>, VESPA-S 4stroke 2007>, ZIP 4stroke 2000> -582060

13
P2R reference P2R reference 81689
Maker reference Maker reference 582060

CENTER STAND "PIAGGIO GENUINE PART" 50 VESPA LX 4STROKE 2005>, VESPA-S 4STROKE 2007>, ZIP 4STROKE 2000> -582060

More information

Quantity required : 1

SCREW - FOR CENTRAL STAND 10X130 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -030115

14
P2R reference P2R reference 65625
Maker reference Maker reference 0301155

SCREW - FOR CENTRAL STAND 10X130 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -030115

More information

Quantity required : 1

271779 - BOULON

15
P2R reference P2R reference 66105
Maker reference Maker reference 271779

271779 - BOULON

More information

Quantity required : 1

SPACER- FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -582298

16
P2R reference P2R reference 67251
Maker reference Maker reference 582298

SPACER- FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -582298

More information

Quantity required : 1

NUT - "PIAGGIO GENUINE PART" -261319

17
P2R reference P2R reference 66047
Maker reference Maker reference 261319

NUT - "PIAGGIO GENUINE PART" -261319

More information

Quantity required : 1

SPRING - FOR STAND "PIAGGIO GENUINE PART" 50 4 stroke LIBERTY, ZIP, VESPA LX, VESPA-S -582505

18
P2R reference P2R reference 81768
Maker reference Maker reference 582505

SPRING - FOR STAND "PIAGGIO GENUINE PART" 50 4 STROKE LIBERTY, ZIP, VESPA LX, VESPA-S -582505

More information

Quantity required : 1

SWINGING ARM "PIAGGIO GENUINE PART" 50-125 VESPA LX 2006>, LXV 2006>, VESPA-S 2007> -56204R

20
P2R reference P2R reference 79823
Maker reference Maker reference 56204R

SWINGING ARM "PIAGGIO GENUINE PART" 50-125 VESPA LX 2006>, LXV 2006>, VESPA-S 2007> -56204R

More information

Quantity required : 1

SCREW - FOR SWING ARM "PIAGGIO GENUINE PARTS" 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-250-300 VESPA GTS -597914

21
P2R reference P2R reference 82319
Maker reference Maker reference 597914

SCREW - FOR SWING ARM "PIAGGIO GENUINE PARTS" 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-250-300 VESPA GTS -597914

More information

Quantity required : 1

562310 - ENTRETOISE

22
P2R reference P2R reference 67018
Maker reference Maker reference 562310

562310 - ENTRETOISE

More information

Quantity required : 1

CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" 50 VESPA LX 4 stroke, VESPA-S 4 stroke, ZIP 4 stroke, LIBERTY 4 stroke, 125 VESPA LX, VESPA -S, FLY, 400-500 BEVERLY -563984

23
P2R reference P2R reference 67043
Maker reference Maker reference 563984

CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" 50 VESPA LX 4 STROKE, VESPA-S 4 STROKE, ZIP 4 STROKE, LIBERTY 4 STROKE, 125 VESPA LX, VESPA -S, FLY, 400-500 BEVERLY -563984

More information

Quantity required : 1

600351 - SILENBLOC

23
P2R reference P2R reference 67431
Maker reference Maker reference 600351

600351 - SILENBLOC

More information

Quantity required : 1
