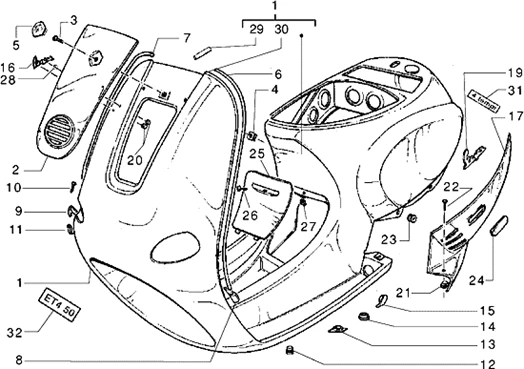

Vehicle Exploded View - VESPA VESPA 50 4T 1998-2005

	P2R reference
	Maker reference	5764556060

CHASSIS ET4 VERT 336

	P2R reference	80877
	Maker reference	57645501

57645501 - CHASSIS

	P2R reference	80879
	Maker reference	5764556066

5764556066 - CHASSIS

	P2R reference	80881
	Maker reference	5764556090

5764556090 - CHASSIS

	P2R reference
	Maker reference	5764556095

Chássis

	P2R reference
	Maker reference	57645560A7

CHASSIS

	P2R reference	80883
	Maker reference	57645560B2

57645560B2 - CHASSIS

	P2R reference	80884
	Maker reference	57645560C1

57645560C1 - CHASSIS

	P2R reference	80885
	Maker reference	57645560D1

57645560D1 - CHASSIS

	P2R reference	80888
	Maker reference	57645560G5

57645560G5 - CHASSIS

	P2R reference	80889
	Maker reference	57645560R7

57645560R7 - CHASSIS

	P2R reference	80890
	Maker reference	57645560V3

57645560V3 - CHASSIS

	P2R reference	80891
	Maker reference	57645560V6

57645560V6 - CHASSIS

	P2R reference	78851
	Maker reference	4722005

STEERING COVER- FRONT "PIAGGIO GENUINE PART" 50 ET2, 125 ET4 RAW TO BE PAINT -4722005-

	P2R reference	78853
	Maker reference	4722005060

4722005060 - CACHE DIRECTION AV ET2/4 VERT 336

	P2R reference	78854
	Maker reference	4722005090

4722005090 - CACHE DIRECTION AV ET2/4 NOIR BRILL 94

	P2R reference	78855
	Maker reference	4722005095

4722005095 - CACHE DIRECTION AV ET2/4 GRIS 729

	P2R reference	78856
	Maker reference	47220050A7

47220050A7 - CACHE DIRECTION AV ET2/4 GRIS PLAT 686

	P2R reference	78857
	Maker reference	47220050B2

47220050B2 - CACHE DIRECTION AV ET2/4 PERLE 693

	P2R reference	78858
	Maker reference	47220050C1

47220050C1 - CACHE DIR BLEU 270

	P2R reference	78859
	Maker reference	47220050D1

47220050D1 - CACHE DIRECTION AV ET2/4 BLEU 251

	P2R reference	78860
	Maker reference	47220050G5

47220050G5 - CACHE DIRECTION BRUT

	P2R reference	78861
	Maker reference	47220050V3

47220050V3 - NEZ DE CLAXON M04 COUCHE FOND

	P2R reference	78862
	Maker reference	47220050V6

47220050V6 - CACHE DIRECTION

	P2R reference	78864
	Maker reference	4722225

4722225 - CACHE DIRECTION AV ET2/4 BLEU 216

	P2R reference	66068
	Maker reference	267958

SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958-

	P2R reference	65832
	Maker reference	199190

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190-

	P2R reference	67129
	Maker reference	576464

DECAL- "PIAGGIO GENUINE PART" 125 VESPA PX (VNX-VSX) -576464

	P2R reference	80176
	Maker reference	573001

573001 - BORDURE TABLIER G

	P2R reference	80177
	Maker reference	573002

573002 - BORDURE TABLIER D

	P2R reference	78090
	Maker reference	299964

CLIP FOR ROD OF LEFT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965-

	P2R reference	78091
	Maker reference	299965

CLIP FOR ROD OF RIGHT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965-

	P2R reference	63854
	Maker reference	0084325

SCREW - -008432

	P2R reference	72923
	Maker reference	CM017405

CM017405 - PLAQUETTE

	P2R reference	78066
	Maker reference	299558

299558 - BOUCHON

	P2R reference	78065
	Maker reference	299557

299557 - BOUCHON

	P2R reference	78067
	Maker reference	299559

299559 - BOUCHON

	P2R reference	78051
	Maker reference	299250

299250 - BOUCHON

	P2R reference	89130
	Maker reference	656219

DECAL "VESPA" "PIAGGIO GENUINE PART" 50-125 VESPA LX 2006>, PRIMAVERA 2012>, VESPA-S 2007>, SPRINT 2014>, 125 VESPA GTS 2007>, PX 2014> -656219-

	P2R reference	77911
	Maker reference	297282000D

297282000D - CARENAGE G GRIS M99

	P2R reference	77912
	Maker reference	297282000L

297282000L - CARENAGE BLEU M99

	P2R reference	77916
	Maker reference	2972820060

2972820060 - FLANC GAUCHE VERT 336

	P2R reference	77917
	Maker reference	2972820090

2972820090 - FLANC GAUCHE 94

	P2R reference	77918
	Maker reference	29728200D1

29728200D1 - FLANC G BLEU 251

	P2R reference	77920
	Maker reference	29728200G5

29728200G5 - CARENAGE

	P2R reference
	Maker reference	29728200V3

CARENAGE

	P2R reference	77923
	Maker reference	297283000D

297283000D - CARENAGE ET2 DROITE GRIS

	P2R reference	77924
	Maker reference	297283000L

297283000L - CARTER DX

	P2R reference	77926
	Maker reference	2972830034

2972830034 - CARENAGE

	P2R reference
	Maker reference	2972830036

COIFFE LAT DR ET2 845 rouge

	P2R reference	77927
	Maker reference	2972830060

2972830060 - FLANC DROIT

	P2R reference	77928
	Maker reference	2972830090

2972830090 - FLANC DROIT 94

	P2R reference	77929
	Maker reference	29728300D1

29728300D1 - FLANC D BLEU 251

	P2R reference	77931
	Maker reference	29728300G5

29728300G5 - CARENAGE

	P2R reference
	Maker reference	29728300V3

CARENAGE

	P2R reference	89131
	Maker reference	656220

DECAL "VESPA" "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 50-125 VESPA -656220

	P2R reference	63846
	Maker reference	0081085

008108 - PLAQUE

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	67113
	Maker reference	575249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249

	P2R reference	65850
	Maker reference	1B000888

SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888-

	P2R reference	139413
	Maker reference	58231R5

SIDE REFLECTOR- "PIAGGIO GENUINE PART" 50-125 ZIP, VESPA LX, LIBERTY, 125-250-400-500 MP3 -58231R5-

	P2R reference	78830
	Maker reference	4721005

SPARK PLUG TRAPDOOR "PIAGGIO GENUINE PARTS" VESPA 50 ET2, 125 ET4 BRUT A PEINDRE -4721005-

	P2R reference	78832
	Maker reference	4721005090

4721005090 - TRAPPE DE VISITE ET2/4 NOIR BRILLANT 94

	P2R reference	78833
	Maker reference	4721005095

4721005095 - TRAPPE DE VISITE ET2/4 GRIS 729

	P2R reference	78834
	Maker reference	47210050A7

TRAPDOOR ET2/4 - PLATINIUM GREY 686 -47210050A7-

	P2R reference	78835
	Maker reference	47210050B2

47210050B2 - TRAPPE DE VISITE ET2/4 PERLE 693

	P2R reference	78840
	Maker reference	47210050R7

47210050R7 - TRAPPE DE VISITE ET2/4 ROUGE DRAGON 894

	P2R reference
	Maker reference	47210050V6

ABATTANT

	P2R reference	65403
	Maker reference	0159115

015911 - VIS S01591100

	P2R reference	72924
	Maker reference	CM017408

NUT / PLATE FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM017408-

	P2R reference	77348
	Maker reference	271710

271710 - ENTRETOISE

	P2R reference	66306
	Maker reference	298604

LOCK SUPPORT "PIAGGIO GENUINE PART" 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD -298604-

	P2R reference
	Maker reference	2972674

TABLIER

	P2R reference	80979
	Maker reference	576855

576855 - MONOGRAMME

	P2R reference	80972
	Maker reference	576824

DECAL "ET4" "PIAGGIO GENUINE PART" VESPA 50 ET4 -576824-
