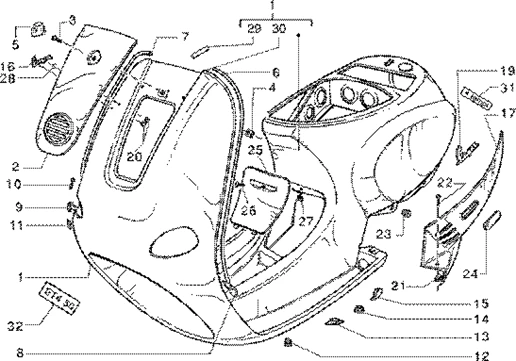

Vehicle Exploded View - VESPA VESPA ET4 50 1998-2005

	P2R reference
	Maker reference	57645500G5

Chássis

	P2R reference
	Maker reference	57645500V3

Chássis

	P2R reference
	Maker reference	5764556060

CHASSIS ET4 VERT 336

	P2R reference	80876
	Maker reference	5764550018

5764550018 - CHASSIS

	P2R reference
	Maker reference	5764556095

Chássis

	P2R reference	80877
	Maker reference	57645501

57645501 - CHASSIS

	P2R reference	80879
	Maker reference	5764556066

5764556066 - CHASSIS

	P2R reference	80880
	Maker reference	5764556087

5764556087 - CHASSIS

	P2R reference	80881
	Maker reference	5764556090

5764556090 - CHASSIS

	P2R reference
	Maker reference	57645560A7

CHASSIS

	P2R reference	80882
	Maker reference	57645560AA

57645560AA - CHASSIS

	P2R reference	80883
	Maker reference	57645560B2

57645560B2 - CHASSIS

	P2R reference	80884
	Maker reference	57645560C1

57645560C1 - CHASSIS

	P2R reference	80885
	Maker reference	57645560D1

57645560D1 - CHASSIS

	P2R reference
	Maker reference	57645560D8

Chássis

	P2R reference	80887
	Maker reference	57645560F2

57645560F2 - CHASSIS

	P2R reference	80889
	Maker reference	57645560R7

57645560R7 - CHASSIS

	P2R reference	80891
	Maker reference	57645560V6

57645560V6 - CHASSIS

	P2R reference	80892
	Maker reference	57645560V8

57645560V8 - CHASSIS

	P2R reference	80894
	Maker reference	57645560VA

57645560VA - CHASSIS

	P2R reference
	Maker reference	47220000V9

CACHE DIRECTION AV ET2/4 VERT PIST. 396

	P2R reference	78846
	Maker reference	47220000AA

47220000AA - CACHE DIRECTION AV ET2/4 BLEU AURORA 422

	P2R reference	78848
	Maker reference	47220000F2

47220000F2 - COUVERCLE

	P2R reference	78849
	Maker reference	47220000V8

47220000V8 - CACHE DIRECTION AV ET2/4 BACCARAT 381

	P2R reference	78851
	Maker reference	4722005

STEERING COVER- FRONT "PIAGGIO GENUINE PART" 50 ET2, 125 ET4 RAW TO BE PAINT -4722005-

	P2R reference	78850
	Maker reference	47220000VA

47220000VA - COUVERCLE

	P2R reference	78853
	Maker reference	4722005060

4722005060 - CACHE DIRECTION AV ET2/4 VERT 336

	P2R reference	78854
	Maker reference	4722005090

4722005090 - CACHE DIRECTION AV ET2/4 NOIR BRILL 94

	P2R reference	78855
	Maker reference	4722005095

4722005095 - CACHE DIRECTION AV ET2/4 GRIS 729

	P2R reference	78856
	Maker reference	47220050A7

47220050A7 - CACHE DIRECTION AV ET2/4 GRIS PLAT 686

	P2R reference	78857
	Maker reference	47220050B2

47220050B2 - CACHE DIRECTION AV ET2/4 PERLE 693

	P2R reference	78858
	Maker reference	47220050C1

47220050C1 - CACHE DIR BLEU 270

	P2R reference	78859
	Maker reference	47220050D1

47220050D1 - CACHE DIRECTION AV ET2/4 BLEU 251

	P2R reference	78860
	Maker reference	47220050G5

47220050G5 - CACHE DIRECTION BRUT

	P2R reference	78861
	Maker reference	47220050V3

47220050V3 - NEZ DE CLAXON M04 COUCHE FOND

	P2R reference	78862
	Maker reference	47220050V6

47220050V6 - CACHE DIRECTION

	P2R reference	78864
	Maker reference	4722225

4722225 - CACHE DIRECTION AV ET2/4 BLEU 216

	P2R reference	66068
	Maker reference	267958

SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958-

	P2R reference	65832
	Maker reference	199190

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190-

	P2R reference	77832
	Maker reference	295486

EMBLEM - "PIAGGIO GENUINE PART" 125-250-500 X9, BEVERLY, 125-250 X8 -295486

	P2R reference	67129
	Maker reference	576464

DECAL- "PIAGGIO GENUINE PART" 125 VESPA PX (VNX-VSX) -576464

	P2R reference	80176
	Maker reference	573001

573001 - BORDURE TABLIER G

	P2R reference	80177
	Maker reference	573002

573002 - BORDURE TABLIER D

	P2R reference	78090
	Maker reference	299964

CLIP FOR ROD OF LEFT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965-

	P2R reference	78091
	Maker reference	299965

CLIP FOR ROD OF RIGHT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965-

	P2R reference	63854
	Maker reference	0084325

SCREW - -008432

	P2R reference	72923
	Maker reference	CM017405

CM017405 - PLAQUETTE

	P2R reference	78066
	Maker reference	299558

299558 - BOUCHON

	P2R reference	78065
	Maker reference	299557

299557 - BOUCHON

	P2R reference	78067
	Maker reference	299559

299559 - BOUCHON

	P2R reference	78051
	Maker reference	299250

299250 - BOUCHON

	P2R reference	89130
	Maker reference	656219

DECAL "VESPA" "PIAGGIO GENUINE PART" 50-125 VESPA LX 2006>, PRIMAVERA 2012>, VESPA-S 2007>, SPRINT 2014>, 125 VESPA GTS 2007>, PX 2014> -656219-

	P2R reference	77911
	Maker reference	297282000D

297282000D - CARENAGE G GRIS M99

	P2R reference	77912
	Maker reference	297282000L

297282000L - CARENAGE BLEU M99

	P2R reference	77913
	Maker reference	2972820018

2972820018 - FLANC GAUCHE 208

	P2R reference	77916
	Maker reference	2972820060

2972820060 - FLANC GAUCHE VERT 336

	P2R reference	77917
	Maker reference	2972820090

2972820090 - FLANC GAUCHE 94

	P2R reference	77918
	Maker reference	29728200D1

29728200D1 - FLANC G BLEU 251

	P2R reference
	Maker reference	29728200D8

FLANC GAUCHE

	P2R reference	77920
	Maker reference	29728200G5

29728200G5 - CARENAGE

	P2R reference
	Maker reference	29728200P1

FLANC GAUCHE

	P2R reference
	Maker reference	29728200V3

CARENAGE

	P2R reference
	Maker reference	29728200V8

FLANC GAUCHE

	P2R reference
	Maker reference	29728200V9

FLANC GAUCHE

	P2R reference	77922
	Maker reference	29728200VA

29728200VA - FLANC GAUCHE

	P2R reference	77923
	Maker reference	297283000D

297283000D - CARENAGE ET2 DROITE GRIS

	P2R reference	77924
	Maker reference	297283000L

297283000L - CARTER DX

	P2R reference	77925
	Maker reference	2972830018

2972830018 - FLANC DROIT 208

	P2R reference	77926
	Maker reference	2972830034

2972830034 - CARENAGE

	P2R reference
	Maker reference	2972830036

COIFFE LAT DR ET2 845 rouge

	P2R reference	77927
	Maker reference	2972830060

2972830060 - FLANC DROIT

	P2R reference	77928
	Maker reference	2972830090

2972830090 - FLANC DROIT 94

	P2R reference	77929
	Maker reference	29728300D1

29728300D1 - FLANC D BLEU 251

	P2R reference
	Maker reference	29728300D8

FLANC DROIT

	P2R reference	77931
	Maker reference	29728300G5

29728300G5 - CARENAGE

	P2R reference
	Maker reference	29728300P1

FLANC DROIT

	P2R reference
	Maker reference	29728300V3

CARENAGE

	P2R reference
	Maker reference	29728300V8

FLANC DROIT

	P2R reference
	Maker reference	29728300V9

FLANC DROIT

	P2R reference
	Maker reference	29728300VA

FLANC DROIT

	P2R reference	89131
	Maker reference	656220

DECAL "VESPA" "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 50-125 VESPA -656220

	P2R reference	63846
	Maker reference	0081085

008108 - PLAQUE

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	67113
	Maker reference	575249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249

	P2R reference	65850
	Maker reference	1B000888

SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888-

	P2R reference	139413
	Maker reference	58231R5

SIDE REFLECTOR- "PIAGGIO GENUINE PART" 50-125 ZIP, VESPA LX, LIBERTY, 125-250-400-500 MP3 -58231R5-

	P2R reference
	Maker reference	47210000AA

COUVERCLE TABLIER

	P2R reference
	Maker reference	47210000V8

COUVERCLE TABLIER

	P2R reference
	Maker reference	47210000V9

TRAPPE DE VISITE ET2/4 VERT PISTACHE 39

	P2R reference	78830
	Maker reference	4721005

SPARK PLUG TRAPDOOR "PIAGGIO GENUINE PARTS" VESPA 50 ET2, 125 ET4 BRUT A PEINDRE -4721005-

	P2R reference	78829
	Maker reference	47210000VA

47210000VA - COUVERCLE TABLIER

	P2R reference	78832
	Maker reference	4721005090

4721005090 - TRAPPE DE VISITE ET2/4 NOIR BRILLANT 94

	P2R reference	78833
	Maker reference	4721005095

4721005095 - TRAPPE DE VISITE ET2/4 GRIS 729

	P2R reference	78834
	Maker reference	47210050A7

TRAPDOOR ET2/4 - PLATINIUM GREY 686 -47210050A7-

	P2R reference	78835
	Maker reference	47210050B2

47210050B2 - TRAPPE DE VISITE ET2/4 PERLE 693

	P2R reference	78840
	Maker reference	47210050R7

47210050R7 - TRAPPE DE VISITE ET2/4 ROUGE DRAGON 894

	P2R reference
	Maker reference	47210050V6

ABATTANT

	P2R reference	65403
	Maker reference	0159115

015911 - VIS S01591100

	P2R reference	72924
	Maker reference	CM017408

NUT / PLATE FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM017408-

	P2R reference	77348
	Maker reference	271710

271710 - ENTRETOISE

	P2R reference	66306
	Maker reference	298604

LOCK SUPPORT "PIAGGIO GENUINE PART" 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD -298604-

	P2R reference
	Maker reference	2972674

TABLIER

	P2R reference	80979
	Maker reference	576855

576855 - MONOGRAMME

	P2R reference	80972
	Maker reference	576824

DECAL "ET4" "PIAGGIO GENUINE PART" VESPA 50 ET4 -576824-
