Vehicle Exploded View - VESPA VESPA ET4 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

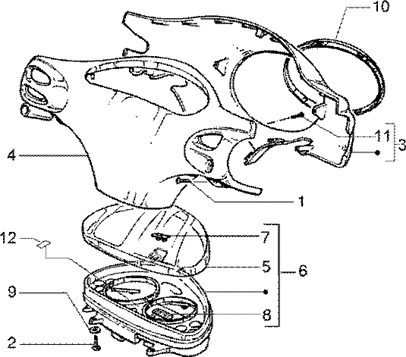

Guidon : T33 COMPTEUR KILOMETRIQUE-COUVERCLES DU GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/708/Vespa_ET4_50_1998-2005_T33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
1 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 4 |
||||||
3 |
FRONT HANDLEBAR COVER "PIAGGIO GENUINE PART" VESPA 50 ET2, 125 ET4 RAW TO BE PAINT -4272005- More informationQuantity required : 1 |
||||||
|
3 |
42720000D8 - COUVRE GUIDON AV ET2/4-LIB. BLEU 202/A More informationQuantity required : 1 |
||||||
|
3 |
42720000F2 - COUVRE GUIDON AV ET2/4-LIB.GRIS 738/A More informationQuantity required : 1 |
||||||
|
3 |
42720000VA - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
3 |
FRONT HANDLEBAR COVER "PIAGGIO GENUINE PART" VESPA 50 ET2, 125 ET4 ALABASTER 208 -4272005018- More informationQuantity required : 1 |
||||||
|
3 |
COUVRE GUIDON AV ET4/2-LIB.VERT 336 |
||||||
|
3 |
4272005090 - COUVRE GUIDON AV ET4/2-LIB. NOIR 94 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/4/4/1/img/78441.jpg)
3 |
FRONT HANDLEBAR COVER "PIAGGIO GENUINE PART" VESPA 50-125 ET4/2 GREY 729 -4272005095- More informationQuantity required : 1 |
||||||
|
3 |
42720050A7 - COUVRE GUIDON AV ET4/2-LIB. GRIS 686 More informationQuantity required : 1 |
||||||
|
3 |
FRONT HANDLEBAR COVER "PIAGGIO GENUINE PART" PIAGGIO 50 ET2, 125 ET4 PEARL WHITE 693 -42720050B2- More informationQuantity required : 1 |
||||||
|
3 |
42720050C1 - COUVRE GUIDON AV ET4/2-LIB. BLEU 270 More informationQuantity required : 1 |
||||||
|
3 |
FRONT HANDLEBAR COVER "PIAGGIO GENUINE PART" PIAGGIO 50 ET2, 125 ET4 BLUE 251 -42720050D1- More informationQuantity required : 1 |
||||||
|
3 |
COUVRE GUIDON AV ET4/2-LIB POUD OR 568 |
||||||
|
3 |
42720050R7 - COUVRE GUIDON AV ET4/2-LIB ROUGE 894 More informationQuantity required : 1 |
||||||
|
3 |
42720050V3 - CACHE GUIDON More informationQuantity required : 1 |
||||||
|
3 |
42720050V6 - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
|
3 |
COUVRE GUIDON AV ET2/4-LIB.VERT 381 |
||||||
|
4 |
REAR HANDLEBAR COVER "PIAGGIO GENUINE PART" PIAGGIO VESPA 50 ET2, 125 ET4 ALABASTER 208 -4274185- More informationQuantity required : 1 |
||||||
|
4 |
580978000D - CACHE DIREC ET2-LIBERTY GRIS PIGMENTE More informationQuantity required : 1 |
||||||
|
4 |
580978000L - CACHE DIR AR BLEU M99 More informationQuantity required : 1 |
||||||
|
4 |
5809780090 - CACHE DIRECTION ET / NOIR PIGM.94 More informationQuantity required : 1 |
||||||
|
4 |
58097800D1 - CACHE DIR AR BLEU 251 More informationQuantity required : 1 |
||||||
|
4 |
CACHE DIREC |
||||||
|
4 |
58097800G5 - COUVR.GUIDON More informationQuantity required : 1 |
||||||
|
4 |
CACHE DIREC |
||||||
|
4 |
COUVR.GUIDON |
||||||
|
4 |
CACHE DIREC |
||||||
|
4 |
58097800V9 - CACHE DIREC ET2/4 396 PISTACHE More informationQuantity required : 1 |
||||||
|
4 |
58097800VA - CACHE DIREC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/8/4/img/66784.jpg)
5 |
DASHBOARD GLASS "PIAGGIO GENUINE PART" 50-125 FLY 2006>2011 -494518 More informationQuantity required : 1 |
||||||
|
6 |
583278 - GR.INSTRUMENT More informationQuantity required : 1 |
||||||
|
6 |
583279 - GR.STRUMENTI ( More informationQuantity required : 1 |
||||||
|
7 |
494519 - POUSSOIR More informationQuantity required : 1 |
||||||
|
8 |
494521 - HORLOGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/1/img/65361.jpg)
9 |
013769 - RONDELLE S01376900 More informationQuantity required : 4 |
||||||
|
10 |
560671 - ENCADREMENT More informationQuantity required : 1 |
||||||
|
11 |
268139 - VIS More informationQuantity required : 1 |
||||||
|
12 |
ESCUSSON |
