Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 4T 3V E5 2020-2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

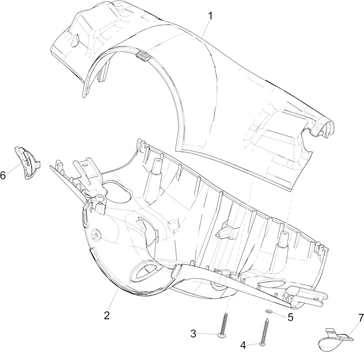

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1000/Vespa_Primavera_50_4T_3V_E5_2020-2021_(EMEA)_03.01.png)
1 |
67364600LG - HANDLEBAR TOP COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/8/5/img/91385.jpg)
1 |
67364600R7 - COUVRE POIGNEE More informationQuantity required : 1 |
||||||
|
1 |
67364600VY - COUVRE POIGNEE More informationQuantity required : 1 |
||||||
|
1 |
67364600G03 - HANDLEBAR TOP COVER More informationQuantity required : 1 |
||||||
|
1 |
67364600NV - HANDLEBAR TOP COVER More informationQuantity required : 1 |
||||||
|
1 |
67364600DQ - HANDLEBAR TOP COVER More informationQuantity required : 1 |
||||||
|
1 |
67364600G02 - HANDLEBAR TOP COVER More informationQuantity required : 1 |
||||||
|
1 |
67364600G01 - HANDLEBAR TOP COVER More informationQuantity required : 1 |
||||||
|
1 |
67364600VK - COUVRE POIGNEE More informationQuantity required : 1 |
||||||
|
1 |
67364600A11 - HANDLEBAR TOP COVER More informationQuantity required : 1 |
||||||
|
1 |
67364600DK - COUVERCLE GUIDON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/8/0/img/91380.jpg)
1 |
67364600BR - COUVRE POIGNEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/8/7/img/91387.jpg)
1 |
UPPER HANDLEBAR COVER "PIAGGIO GENUINE PART" VESPA 50-125 PRIMAVERA NOIR 98/A -67364600XN2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/7/8/img/91378.jpg)
1 |
673646 - CACHE GUIDON More informationQuantity required : 1 |
||||||
|
2 |
1B005469000LG - LOWER HANDLEBAR COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/1/7/img/151217.jpg)
2 |
1B005469000R7 - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
||||||
|
2 |
1B005469000G03 - LOWER HANDLEBAR COVER More informationQuantity required : 1 |
||||||
|
2 |
1B005469000NV - LOWER HANDLEBAR COVER More informationQuantity required : 1 |
||||||
|
2 |
1B005469000DQ - LOWER HANDLEBAR COVER More informationQuantity required : 1 |
||||||
|
2 |
1B005469000G02 - LOWER HANDLEBAR COVER More informationQuantity required : 1 |
||||||
|
2 |
1B005469000G01 - LOWER HANDLEBAR COVER More informationQuantity required : 1 |
||||||
|
2 |
1B005469000VK - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
||||||
|
2 |
1B005469000A11 - LOWER HANDLEBAR COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/1/4/5/img/153145.jpg)
2 |
1B005469000BR - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
||||||
|
2 |
1B005469000DK - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/1/8/img/151218.jpg)
2 |
HANDLEBAR LOWER COVER "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA BLACK 98/A -1B005469000XN2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/1/4/9/img/153149.jpg)
2 |
1B005469 - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
3 |
259577 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/0/8/img/77108.jpg)
4 |
265636 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/5/img/65425.jpg)
5 |
016670 - RONDELLE S01667000 More informationQuantity required : 2 |
||||||
|
6 |
67543100LG - RIGHT COVER FOR LOWER HANDLEBER COVER More informationQuantity required : 1 |
||||||
|
6 |
67543100R7 - COUVERCLE GAU. More informationQuantity required : 1 |
||||||
|
6 |
67543100G03 - RIGHT COVER FOR LOWER HANDLEBER COVER More informationQuantity required : 1 |
||||||
|
6 |
67543100NV - RIGHT COVER FOR LOWER HANDLEBER COVER More informationQuantity required : 1 |
||||||
|
6 |
67543100G02 - RIGHT COVER FOR LOWER HANDLEBER COVER More informationQuantity required : 1 |
||||||
|
6 |
67543100DQ - RIGHT COVER FOR LOWER HANDLEBER COVER More informationQuantity required : 1 |
||||||
|
6 |
67543100G01 - RIGHT COVER FOR LOWER HANDLEBER COVER More informationQuantity required : 1 |
||||||
|
6 |
67543100VK - COUVERCLE GAU. More informationQuantity required : 1 |
||||||
|
6 |
67543100A11 - RIGHT COVER FOR LOWER HANDLEBER COVER More informationQuantity required : 1 |
||||||
|
6 |
67543100DK - COUVERCLE GAU. More informationQuantity required : 1 |
||||||
|
6 |
67543100BR - COUVERCLE GAU. More informationQuantity required : 1 |
||||||
|
6 |
67543100XN2 - COUVERCLE GAU. More informationQuantity required : 1 |
||||||
|
6 |
675431 - COUVERCLE GAU. More informationQuantity required : 1 |
||||||
|
7 |
67541300LG - LEFT COVER FOR LOWER COVER More informationQuantity required : 1 |
||||||
|
7 |
67541300R7 - COUVERCLE DRT More informationQuantity required : 1 |
||||||
|
7 |
67541300G03 - LEFT COVER FOR LOWER COVER More informationQuantity required : 1 |
||||||
|
7 |
67541300NV - LEFT COVER FOR LOWER COVER More informationQuantity required : 1 |
||||||
|
7 |
67541300G02 - LEFT COVER FOR LOWER COVER More informationQuantity required : 1 |
||||||
|
7 |
67541300DQ - LEFT COVER FOR LOWER COVER More informationQuantity required : 1 |
||||||
|
7 |
67541300G01 - LEFT COVER FOR LOWER COVER More informationQuantity required : 1 |
||||||
|
7 |
67541300VK - COUVERTURE GUIDON GAUCHE More informationQuantity required : 1 |
||||||
|
7 |
67541300A11 - LEFT COVER FOR LOWER COVER More informationQuantity required : 1 |
||||||
|
7 |
67541300DK - COUVERTURE GUIDON GAUCHE More informationQuantity required : 1 |
||||||
|
7 |
67541300BR - COUVERCLE DRT More informationQuantity required : 1 |
||||||
|
7 |
67541300XN2 - COUVERCLE DRT More informationQuantity required : 1 |
||||||
|
7 |
675413 - COUVERCLE DRT More informationQuantity required : 1 |
