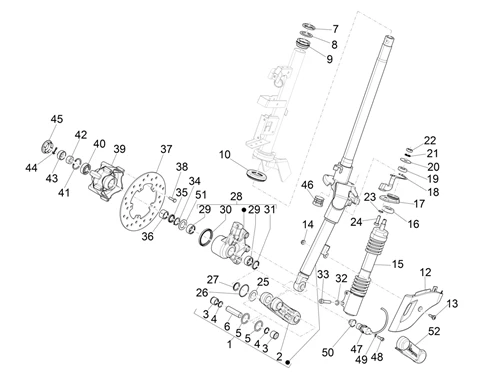

Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 4T 3V E5 2020-2021 (EMEA)

	P2R reference	75994
	Maker reference	1C0003975

FRONT FORK "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA 2017>, SPRINT 2017> -1C0003975-

	P2R reference	86836
	Maker reference	6483975

FRONT SUSPENSION ARM "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-300 YOURBAN -6483975-

	P2R reference	75262
	Maker reference	198513

ROLLER BEARING FOR FORK LINK "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA + MP3 -198513-

	P2R reference	65707
	Maker reference	119219

GASKET RING FOR FRONT FORK ARTICULATION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -119219-

	P2R reference	63834
	Maker reference	0067315

GASKET FOR SUSPENSION ROCKER "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA ET MP3 -006731-

	P2R reference	65779
	Maker reference	177451

ARTICULATION SHAFT AXLE FOR FRONT SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO ALL THE SCOOTER VESPA/125-250-300-400-500 MP3 -177451-

	P2R reference	65339
	Maker reference	01110945

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094-

	P2R reference	63783
	Maker reference	00375145

STEERING WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -0037514-

	P2R reference	68161
	Maker reference	65069345

UPPER HEADSET "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR -65069345

	P2R reference	87018
	Maker reference	65007545

STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545

	P2R reference	140118
	Maker reference	1C001165

FRONT SHOCK ABSORBER COVER "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -1C001165-

	P2R reference	73367
	Maker reference	CM179302

CM179302 - VIS

	P2R reference	70940
	Maker reference	969224

969224 - ECROU

	P2R reference	155345
	Maker reference	1C004068R

1C004068R - AMORTISSEUR

	P2R reference	177325
	Maker reference	1C004075R

1C004075R - AMORTISSEUR AVANT

	P2R reference	65770
	Maker reference	174874

RUBBER PAD FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER +MAXISCOOTER -174874-

	P2R reference	160664
	Maker reference	1C004308

1C004308 - SUPPORT

	P2R reference	153165
	Maker reference	1C003390

1C003390 - PATTE

	P2R reference	74966
	Maker reference	174085

FRONT SUSPENSION ARM BUFFER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250-300 VESPA GTS, 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125 VESPA PX -174085-

	P2R reference	74967
	Maker reference	174088

174088 - RONDELLE

	P2R reference	65346
	Maker reference	0125355

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535-

	P2R reference	73964
	Maker reference	0212105

021210 - ECROU EX 319438 + S02121000

	P2R reference	65418
	Maker reference	0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

	P2R reference
	Maker reference	00000031120

ARAND.PLANA MECANIZ. D12 DIN125 ZnB

	P2R reference	75024
	Maker reference	177445

177445 - ENTRETOISE

	P2R reference	65776
	Maker reference	177408

177408 - BAGUE

	P2R reference	75028
	Maker reference	177521

177521 - BAGUE ETANCHEITE

	P2R reference	149279
	Maker reference	1C0019705

1C0019705 - SUPPORT

	P2R reference	75022
	Maker reference	177436
	Replaced by référence 198561

ROLLER BEARING FOR DRAWN CAP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER -177436

	P2R reference	75025
	Maker reference	177494

BUSHING FOR FRONT WHEEL HUB "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177494-

	P2R reference	142375
	Maker reference	1C001969

1C001969 - BOURRAGE

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

	P2R reference	65747
	Maker reference	149104

SCREW - (8X40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104-

	P2R reference	65747
	Maker reference	149104

SCREW - (8X40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104-

	P2R reference	75021
	Maker reference	177414

177414 - ENTRETOISE

	P2R reference	75023
	Maker reference	177443

FRONT WHEEL GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -177443

	P2R reference	65778
	Maker reference	177442

ROLLER BEARING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177442-

	P2R reference	67040
	Maker reference	56395R

FRONT BRAKE DISC"PIAGGIO GENUINE PART" 50-125 VESPA LX 2005>, VESPA S 2007>, PRIMAVERA 2013>, FLY 2005>, 50 ZIP SP 2006>, 125 VESPA PX 2001> -56395R

	P2R reference	75976
	Maker reference	1C000291

1C000291 - VIS M6X22

	P2R reference	207017
	Maker reference	1C000383

1C0003836 - MOYEU DE ROUE AVANT

	P2R reference	207017
	Maker reference	1C0003836

1C0003836 - MOYEU DE ROUE AVANT

	P2R reference	68102
	Maker reference	649910

FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910

	P2R reference	63823
	Maker reference	0066355

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635-

	P2R reference	65601
	Maker reference	0211145

021114 - ECROU S02111400

	P2R reference	75029
	Maker reference	177609

CAP - FOR WHEEL "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER -177609-

	P2R reference	65355
	Maker reference	0127895

REAR WHEEL SAFETY PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -012789 -

	P2R reference	76015
	Maker reference	1C000523

COVER - FOR REAR WHEEL "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER+MAXISCOOTER - CHROME -1C000523

	P2R reference	67462
	Maker reference	601026

601026 - BOUCHON

	P2R reference	76125
	Maker reference	1D0007655

SPEED SENSOR "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 50-125 VESPA SPRINT, PRIMAVERA -1D0007655

	P2R reference	68497
	Maker reference	709674

709674 - VIS

	P2R reference	63841
	Maker reference	0069765

006976 - RONDELLE S00697600

	P2R reference	90442
	Maker reference	668780

668780 - RONDELLE

	P2R reference	63816
	Maker reference	0064225

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006422-

	P2R reference	79781
	Maker reference	561433

FRONT SUSPENSION ARM COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-250-300 GTS -561433-
