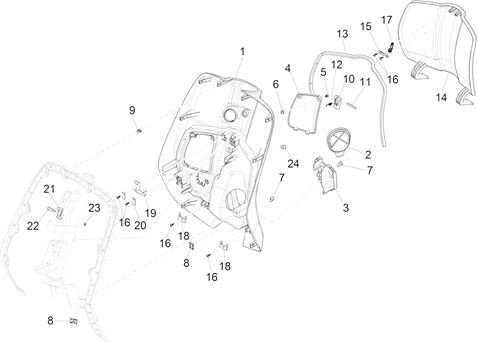

Vehicle Exploded View - VESPA VESPA SPRINT 125 4T 3V IGET ABS E4 2016-2018 EMEA

	P2R reference	151338
	Maker reference	1B003333000HT

COUNTER SHIELD "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT GREY 715/C -1B003333000HT-

	P2R reference	139937
	Maker reference	1B003333000R7

COUNTER SHIELD "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT RED 894 -1B003333000R7

	P2R reference	139928
	Maker reference	1B00333300090

COUNTER SHIELD "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT BLACK 94 -1B00333300090-

	P2R reference	139934
	Maker reference	1B003333000HQ

COUNTER SHIELD "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT GREY 707/C -1B003333000HQ-

	P2R reference	139929
	Maker reference	1B003333000BR

COUNTER SHIELD "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT WHITE 544 -1B003333000BR

	P2R reference	146352
	Maker reference	1B003333000TA

COUNTER SHIELD "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT ORANGE 890/A -1B003333000TA-

	P2R reference	146353
	Maker reference	1B003333000VU

COUNTER SHIELD "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT GREEN 341/A -1B003333000VU-

	P2R reference	139927
	Maker reference	1B003333

COUNTER SHIELD "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT RAW TO BE PAINTED -1B003333

	P2R reference	146349
	Maker reference	1B003333000L7

COUNTER SHIELD "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT YELLOW 974/A -1B003333000L7-

	P2R reference	139935
	Maker reference	1B003333000L5

COUNTER SHIELD "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT YELLOW 968/A -1B003333000L5-

	P2R reference	139931
	Maker reference	1B003333000DQ

COUNTER SHIELD "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT BLUE 261/A -1B003333000DQ-

	P2R reference	89676
	Maker reference	657135

657135 - BOUCHON

	P2R reference	139974
	Maker reference	1B0035230000C

1B0035230000C - POCKET GAUCHE DE LA POITRINE

	P2R reference	75620
	Maker reference	1B000588

1B000588 - PORTE COFFRE A GANTS

	P2R reference	73358
	Maker reference	CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

	P2R reference	109019
	Maker reference	157716

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716

	P2R reference	73364
	Maker reference	CM179201

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201-

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	73404
	Maker reference	D9004468091

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

	P2R reference	67167
	Maker reference	577861

577861 - LEVIER

	P2R reference	81222
	Maker reference	577400

577400 - AXE

	P2R reference	81221
	Maker reference	577399

577399 - RESSORT

	P2R reference	66298
	Maker reference	297275

FRONT BOOT DOOR GASKET "PIAGGIO GENUINE PART" 50-125 FLY, VESPA LX, PRIMAVERA, VESPA SPRINT, 125-250-500 X9, BEVERLY -297275-

	P2R reference	151339
	Maker reference	67361800HT

67361800HT - PORTE COFFRE A GANTS

	P2R reference	91323
	Maker reference	6736180090

6736180090 - PORTE COFFRE A GANTS

	P2R reference	177367
	Maker reference	67361800R7

1B006824000R7 - FRONT LUGGAGE COMPARTEMENT DOOR

	P2R reference	91322
	Maker reference	673618

673618 - PORTE COFFRE A GANTS

	P2R reference	91327
	Maker reference	67361800DQ

67361800DQ - PORTE COFFRE A GANTS

	P2R reference	91328
	Maker reference	67361800L5

67361800L5 - PORTE COFFRE A GANTS

	P2R reference	140574
	Maker reference	67361800HQ

67361800HQ - PORTE COFFRE A GANTS

	P2R reference	146614
	Maker reference	67361800VU

67361800VU - PORTE COFFRE A GANTS

	P2R reference	146613
	Maker reference	67361800TA

67361800TA - PORTE COFFRE A GANTS

	P2R reference	146610
	Maker reference	67361800L7

67361800L7 - PORTE COFFRE A GANTS

	P2R reference	91325
	Maker reference	67361800BR

67361800BR - PORTE COFFRE A GANTS

	P2R reference	177367
	Maker reference	1B006824000R7

1B006824000R7 - FRONT LUGGAGE COMPARTEMENT DOOR

	P2R reference	66002
	Maker reference	252420

DOOR CLOSING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -252420

	P2R reference	66301
	Maker reference	297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

	P2R reference	140004
	Maker reference	1B003658

GLOVE BOX LOCK SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -1B003658-

	P2R reference	66022
	Maker reference	257614

DOOR FIXING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -257614-

	P2R reference	91999
	Maker reference	675478

GLOVE BOX LEVER "PIAGGIO GENUINE PART" VESPA 50-125 PRIMAVERA, SPRINT -675478-

	P2R reference	92001
	Maker reference	675490

TRAPDOOR PLATE "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -675490

	P2R reference	92000
	Maker reference	675489

675489 - LEVIER SERRURE PORTE

	P2R reference	66314
	Maker reference	299972

299972 - VIS

	P2R reference	67162
	Maker reference	577620

577620 - ECROU

	P2R reference	73365
	Maker reference	CM179202

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202
