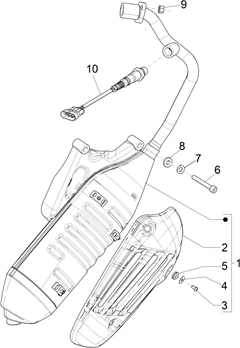

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/784/Vespa_Sprint_125_4T_3V_IGET_ABS_E4_2016-2018_EMEA_01.42.png)
1 |
1A0063425 - COMPLET D'ECHAPPEMENT DE PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/6/3/1/img/139631.jpg)
2 |
EXHAUST PROTECTION "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT -1A006767 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
3 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267 More informationQuantity required : 3 |
||||||
|
3 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/0/1/1/img/93011.jpg)
4 |
844927 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/4/img/69204.jpg)
5 |
841782 - PASSE CABLE More informationQuantity required : 3 |
||||||
|
6 |
872997 - VIS M8X55 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
7 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/8/img/68488.jpg)
8 |
709012 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
9 |
NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/9/img/67299.jpg)
10 |
LAMBDA SENSOR "PIAGGIO GENUINE PART" 50 LIBERTY 3V 2015> -584344 More informationQuantity required : 1 |
