Eclatés de véhicule - APRILIA AREA 51 50 1998-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

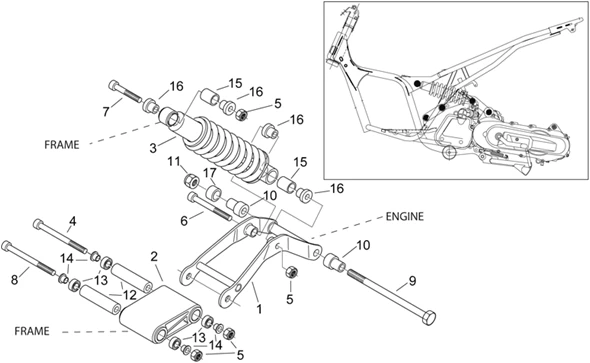

Chassis : 28.04 BIELLES - SUSPENSION AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/237/Area_51_1998-2000_28.04.PNG)
1 |
Double biellette; |
||||||
|
2 |
Bielle simple; |
||||||
|
3 |
AP8203746 - AMORTISSEUR Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
Amortisseur |
||||||
|
4 |
AP8150092 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
5 |
ECROU AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150436- Plus d'informationsQuantité requise : 4 |
||||||
|
6 |
AP8150287 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/8/img/71818.jpg)
7 |
VIS BTR (10X60) ORIGINE PIAGGIO COMMUN ALA GAMME -AP8150049- Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP8150310 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
Vis |
||||||
|
10 |
Entretoise fix. moteur; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/4/img/71884.jpg)
11 |
ECROU AUTOBLOQUANT/NYLSTOP (M12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150432 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
Entretoise bielle simple |
||||||
|
13 |
Roulement |
||||||
|
14 |
"Douille en ""T"""; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/5/9/9/img/55599.jpg)
15 |
SILENTBLOC AMORTISSEUR ARRIERE ORIGINE APRILIA 50 RS 1996>2005 -AP8203826- Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
"Douille en ""T""" |
||||||
|
17 |
AP8221287 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
