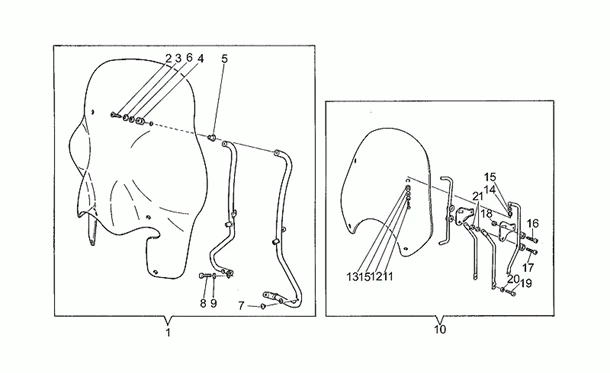

Chassis : 33.17 PARE-BRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/477/California_EV_1100_1997-2000_33.17.PNG)
1 |
Pare-brise cpl.Big |
||||||
|
1 |
Pare-brise cpl.Big |
||||||
|
2 |
GU98270620 - VIS Plus d'informationsQuantité requise : 6 |
||||||
|
3 |
GU03530543 - ROSETTA SAGOMATA Plus d'informationsQuantité requise : 6 |
||||||
|
4 |
GU03530546 - SILENT BLOCK Plus d'informationsQuantité requise : 6 |
||||||
|
5 |
Entretoise |
||||||
|
6 |
Rondelle |
||||||
|
7 |
GU03530542 - TAPPO Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
8 |
VIS BTR (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98682316 Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
GU95000206 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
Pare-brise cpl.Small |
||||||
|
11 |
GU98270620 - VIS Plus d'informationsQuantité requise : 4 |
||||||
|
12 |
GU03530543 - ROSETTA SAGOMATA Plus d'informationsQuantité requise : 4 |
||||||
|
13 |
GU03530546 - SILENT BLOCK Plus d'informationsQuantité requise : 4 |
||||||
|
14 |
Entretoise |
||||||
|
15 |
Rondelle |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
16 |
VIS BTR (8X20) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98682420 Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
GU98622425 - VIS M8X25 Plus d'informationsQuantité requise : 2 |
||||||
|
18 |
GU92602408 - ECROU Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
VIS BTR (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98682316 Plus d'informationsQuantité requise : 4 |
||||||
|
20 |
GU95000206 - RONDELLE Plus d'informationsQuantité requise : 4 |
||||||
|
21 |
GU92602208 - ECROU M8X1,25 Plus d'informationsQuantité requise : 3 |
