Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1100 California EV 1100 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

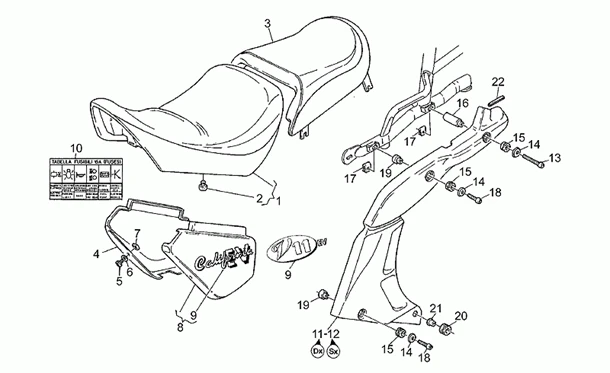

Chassis : 33.26 SELLES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/477/California_EV_1100_1997-2000_33.26.PNG)
1 |
Selle pilote |
||||||
|
2 |
GU29461650 - CAOUTCHOUC Plus d'informationsQuantité requise : 4 |
||||||
|
3 |
GU03464000 - SELLA PASS. Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
|
||||||
|
4 |
|
||||||
|
4 |
Aile D |
||||||
|
4 |
GU03476206 - COPRIACCUMUL.DX GREZZO Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
Aile D |
||||||
|
4 |
Aile D |
||||||
|
4 |
Aile D |
||||||
|
4 |
GU03476211 - FIANCATINA DX Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU03476221 - FIANCATINA DX Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU03476222 - FIANCATINA DX Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
Aile D |
||||||
|
4 |
GU03476226 - FIANCATINA DX Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
Aile D |
||||||
|
4 |
Aile D |
||||||
|
4 |
GU03476229 - FIANCATINA DX Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU89000349 - AILE D Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
|
||||||
|
5 |
GU98326016 - VIS Plus d'informationsQuantité requise : 4 |
||||||
|
6 |
GU66478610 - RONDELLE NYLON 6X17X1 Plus d'informationsQuantité requise : 4 |
||||||
|
7 |
GU92660601 - ECROU EN CAGE Plus d'informationsQuantité requise : 4 |
||||||
|
8 |
GU03476306 - COPRIACCUMUL.SX GREZZO Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
GU03476307 - FIANCATINA SX Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
Aile G |
||||||
|
8 |
GU03476309 - FIANCATINA SX Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
Aile G |
||||||
|
8 |
Aile G |
||||||
|
8 |
GU03476321 - FIANCATINA SX Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
|
||||||
|
8 |
|
||||||
|
8 |
Aile G |
||||||
|
8 |
GU03476322 - FIANCATINA SX Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
Aile G |
||||||
|
8 |
Aile G |
||||||
|
8 |
GU03476327 - FIANCATINA SX Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
GU03476328 - FIANCATINA SX Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
GU03476329 - FIANCATINA SX Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
Aile G |
||||||
|
8 |
GU89000350 - AILE G Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
GU03922001 - "DEC.""CALIF.V11 EV"" ARG/BL" Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
|
||||||
|
9 |
"Déc.""Calif.V11 EV"" arg" |
||||||
|
10 |
GU03945400 - "DECALCOMANIE ""SCHEMA FUSIBILI""" Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
GU03467300 - PARATIA DX Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
Parois arriére g. |
||||||
|
13 |
GU98230645 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
GU03462800 - ROSETTA SAGOMATA Plus d'informationsQuantité requise : 6 |
||||||
|
15 |
GU91551105 - CAOUTCHOUC Plus d'informationsQuantité requise : 6 |
||||||
|
16 |
GU03471802 - DISTANZIALE Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
GU28576590 - CLIP Plus d'informationsQuantité requise : 4 |
||||||
|
18 |
GU98230626 - VIS 6X25 Plus d'informationsQuantité requise : 4 |
||||||
|
19 |
GU03471801 - DISTANZIALE INF. Plus d'informationsQuantité requise : 4 |
||||||
|
20 |
GU91551106 - CAOUTCHOUC Plus d'informationsQuantité requise : 2 |
||||||
|
21 |
GU91120808 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
|
22 |
GU00823931055 - PROFILO GOMMA EPDM Plus d'informationsQuantité requise : 1 |
