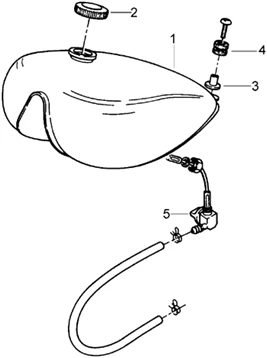

Chassis : 28.12 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/287/Classic_50_1992-1999_28.12.PNG)
1 |
Réserv.ess.vert+décalco; |
||||||
|
1 |
Réservoir gris+décalco; |
||||||
|
1 |
Réserv.ess.violet+décalco; |
||||||
|
1 |
Réservoir noir+décalco; |
||||||
|
1 |
Réserv.ess.bl/rge+décalco |
||||||
|
1 |
Réserv.ess.noir/vert+décalco |
||||||
|
1 |
Réserv.ess.rge/bge+décalco |
||||||
|
1 |
Réserv.ess.noir/jne+décalco; |
||||||
|
1 |
Réserv. rouge/gris+décal.; |
||||||
|
1 |
Réserv. bleu clair/noir+décal.; |
||||||
|
1 |
Réserv.ess.bleu/or+décalco; |
||||||
|
1 |
Réserv.ess.bl/rouge+décalco; |
||||||
|
1 |
Réservoir orange/gris+décalco; |
||||||
|
2 |
Bouchon réservoir essence |
||||||
|
3 |
AP8121804 - DOUILLE SUPPORT RESERVOIR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/1/img/71391.jpg)
4 |
TAMPON CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120311 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/2/6/img/55426.jpg)
5 |
ROBINET ESSENCE 50 A BOITE ORIGINE PIAGGIO APRILIA 50 CLASSIC 1992>1999 -AP8202085- Plus d'informationsQuantité requise : 1 |
