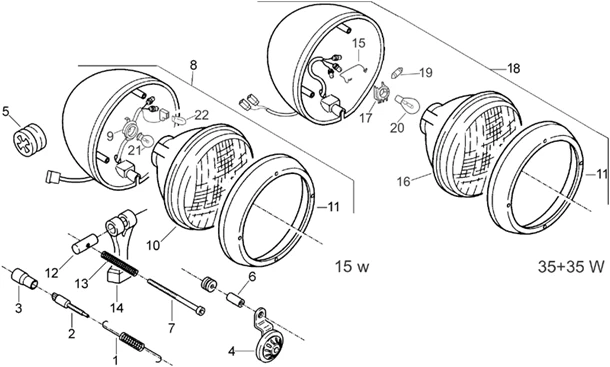

Chassis : 28.32 FEU AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/287/Classic_50_1992-1999_28.32.PNG)
1 |
Ressort interrupteur stop |
||||||
|
2 |
Interrupteur stop sans écrou |
||||||
|
3 |
Capuchon interrupteur stop AR. |
||||||
|
4 |
KLAXON |
||||||
|
5 |
Caoutchouc strié int. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/0/img/71430.jpg)
6 |
ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME-AP8121041 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
Vis CB |
||||||
|
8 |
Phare avant |
||||||
|
9 |
Porte-ampoule |
||||||
|
10 |
AP8212192 - PARABOLE COMPLETE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AP8120722 - BAGUE CHRO.PHARE AV Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
Pivot; |
||||||
|
13 |
Ressort réglage feux |
||||||
|
14 |
Bielle réglage feux; |
||||||
|
15 |
Ressort; |
||||||
|
16 |
OPTI PHARE AVT=8212359 |
||||||
|
17 |
Porte-ampoule |
||||||
|
18 |
Phare avant |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/0/img/65660.jpg)
19 |
AMPOULE/LAMPE 12V 5W NAVETTE ORIGINE PIAGGIO COMMUN A LA GAMME -071633 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
20 |
AMPOULE/LAMPE 12V 35/35W S2 ORIGINE PIAGGIO COMMUN A LA GAMME -219528 Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
22 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE ORIGINE PIAGGIO COMMUN A LA GAMME -2920225- Plus d'informationsQuantité requise : 1 |
