Eclatés de véhicule - GILERA COGUAR 125
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

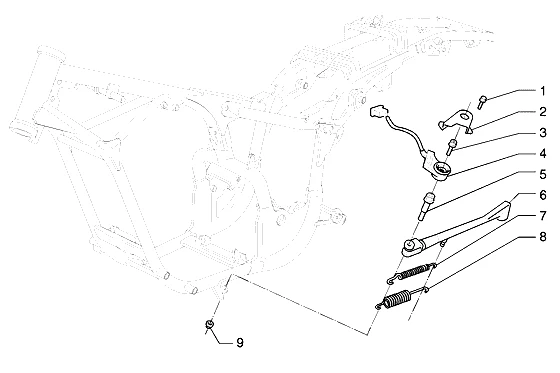

Châssis : T20 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/168/Coguar-123.png)
Rechercher
1 |
495325 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
2 |
PROTECTION |
||||||
|
3 |
VIS |
||||||
|
4 |
REGULATEUR M17 |
||||||
|
4 |
CONTACTEUR BEQUILLE |
||||||
|
5 |
PIVOT |
||||||
|
6 |
BEQUILLE LAT |
||||||
|
7 |
RESSORT |
||||||
|
8 |
RESSORT |
||||||
|
9 |
ECROU |
