Eclatés de véhicule - GILERA COGUAR 125
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

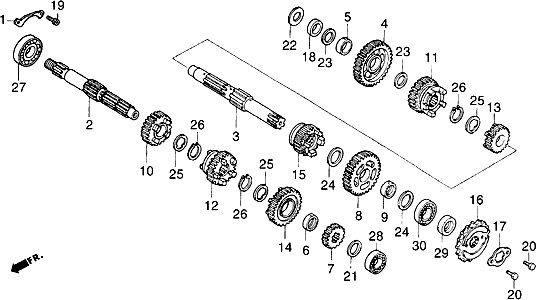

Moteur : T14 TRANSMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/168/Coguar_T14.PNG)
1 |
PLAQUETTE |
||||||
|
2 |
ARBRE PRIMAIRE |
||||||
|
3 |
495519 - ARBRE SECONDAIRE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
ENGRENAGE |
||||||
|
5 |
COLLIER |
||||||
|
6 |
DOUILLE |
||||||
|
7 |
ENGRENAGE |
||||||
|
8 |
ENGRENAGE |
||||||
|
9 |
DOUILLE |
||||||
|
10 |
ENGRENAGE |
||||||
|
11 |
ENGRENAGE |
||||||
|
12 |
ENGRENAGE |
||||||
|
13 |
ENGRENAGE |
||||||
|
14 |
ENGRENAGE |
||||||
|
15 |
ENGRENAGE |
||||||
|
16 |
495532 - PIGNON Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
495533 - PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
COLLIER |
||||||
|
19 |
VIS |
||||||
|
20 |
495229 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
|
20 |
495598 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
21 |
RONDELLE |
||||||
|
22 |
RONDELLE |
||||||
|
23 |
495266 - CIRCLIPS Plus d'informationsQuantité requise : 2 |
||||||
|
24 |
RONDELLE EX 495622 |
||||||
|
25 |
RONDELLE EX 495622 |
||||||
|
26 |
AGRAFE |
||||||
|
27 |
495631 - ROULEMENT Plus d'informationsQuantité requise : 1 |
||||||
|
28 |
495635 - ROULEMENT Plus d'informationsQuantité requise : 1 |
||||||
|
29 |
495640 - PARE HUILE Plus d'informationsQuantité requise : 1 |
||||||
|
30 |
ROULEMENT |
