Eclatés de véhicule - DERBI GP1 250 2ver E3 2007 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

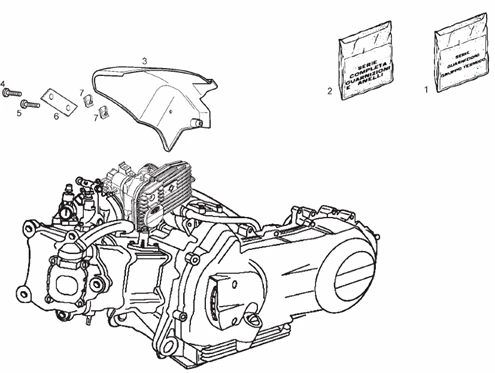

Moteur : 16 COUVERCLES CARTER MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1149/GP1_250_2ver_E3_2007_(APAC_EMEA)_16.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/4/1/img/66941.jpg)
1 |
POCHETTE DE JOINT HAUT MOTEUR ORIGINE PIAGGIO ORIGINE125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005> -4975886- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/4/5/img/66945.jpg)
2 |
JOINT HAUT MOTEUR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 CC MOTEUR LEADER (POCHETTE) -497593 Plus d'informationsQuantité requise : 1 |
||||||
3 |
00G01800121 - TAPA CUBRE-BOBINA GP1 250CC Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
00008062000 - BOULON BOMBEE ALLEN 6M100X20 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/4/img/63664.jpg)
5 |
VIS BTR TETE BOMBEE (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -00008061500 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
861132 - SOPTE.FIJ.CUBRE BOBIN.GP1 250CC - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 1 |
