Eclatés de véhicule - DERBI GP1 250 2ver E3 2007 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

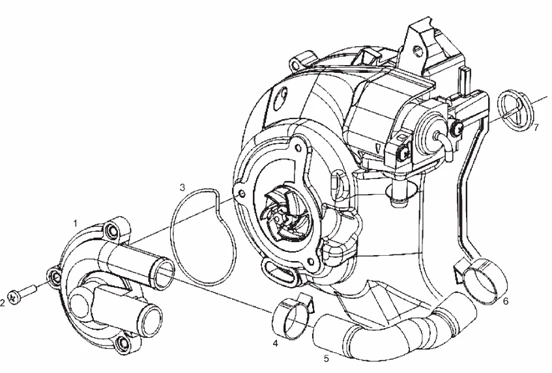

Moteur : 28 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1149/GP1_250_2ver_E3_2007_(APAC_EMEA)_28.png)
1 |
846734 - COUVERCLE Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
2 |
VIS CRUCIFORME (5X22) ORIGINE PIAGGIO COMMUN A LA GAMME -828662- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/7/1/img/66671.jpg)
3 |
JOINT TORIQUE DE POMPE A EAU ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -485080- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/1/img/72881.jpg)
4 |
COLLIER DURITE REFROIDISSEMENT (30MM) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -CM001922- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/8/6/img/70686.jpg)
5 |
DURITE/TUYAU POMPE A EAU CYLINDRE ORIGINE PIAGGIO 250-300 MP3, GTS, X7, X8, X9 -878626- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
6 |
COLLIER DURITE (19.8MM) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM001904 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/1/img/69231.jpg)
7 |
RESSORT ENTRAINEMENT POMPE A EAU ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTEUR 125-250-300 -842390- Plus d'informationsQuantité requise : 1 |
|||||||||
