Eclatés de véhicule - GILERA GPR 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

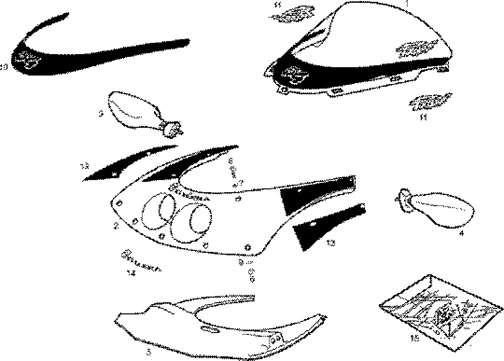

Châssis : T18 COUVERCLE DU GUIDON-CARENAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T18.PNG)
1 |
PARE BRISE |
||||||
|
2 |
00H02253371 - CUPOLINO FRONT.GIL.REPL Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
00H02203671 - ENSEMBLE MIRROIR RETROVISEUR Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
00H04602921 - ENSEMBLE RFTROVISEUR GAUCHE GP Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
PROTECTION INFERIEURE PHARES G |
||||||
|
6 |
Ecrou |
||||||
|
7 |
RONDELLE FIXATION PARE-BRISE C -00H04901411- Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
00008041600 - VIS ALLEN ? T~TE RONDE 4M70X16 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
RONDELLE |
||||||
|
10 |
ADHESIF |
||||||
|
11 |
00H06807111 - POCHE ADHESIVE GILERA REPL-01 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
DECALQUE REP 01 |
||||||
|
13 |
ADHESIF CARENAGE.FR.GILERA REP01 |
||||||
|
14 |
ADHESIF DE CARENAGE.FR |
||||||
|
15 |
KIT PLAQUETTE GPR GIL.REPLICA |
Tous les éclatés de ce véhicule
-
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005.PNG)
-
T1 Carter
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T1.PNG)
-
T10 Installation de refroidissement
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T10.PNG)
-
T11 Chassis-bequille
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T11.PNG)
-
T12 Fourche
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T12.PNG)
-
T13 Amortisseur ar.-bras oscillant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T13.PNG)
-
T14 Reservoir
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T14.PNG)
-
T15 Selle-garde boue avant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T15.PNG)
-
T16 Porte casque
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T16.PNG)
-
T17 Couvertures laterale
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T17.PNG)
-
T18 Couvercle du guidon-carenage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T18.PNG)
-
T19 Pieces composant le guidon
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T19.PNG)
-
T2 Vilebrequin-ensemble cylindre
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T2.PNG)
-
T20 Frein arriere
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T20.PNG)
-
T21 Projecteur-groupe instruments
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T21.PNG)
-
T22 Dispositifs electriques
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T22.PNG)
-
T23 Roue av.-etrier du frein
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T23.PNG)
-
T24 Roue ar.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T24.PNG)
-
T3 Gr.embrayage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T3.PNG)
-
T4 Axe primaire-axe secondaire
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T4.PNG)
-
T5 Selecteur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T5.PNG)
-
T6 Volant magnetique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T6.PNG)
-
T7 Demarreur electrique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T7.PNG)
-
T8 Carburateur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T8.PNG)
-
T9 Silencieux
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T9.PNG)
